  6. Swivel Plate Caster, 400 lb., Plate Type A
Zoro Select Swivel Plate Caster, 400 lb., Plate Type A DCIB06041S002 - main

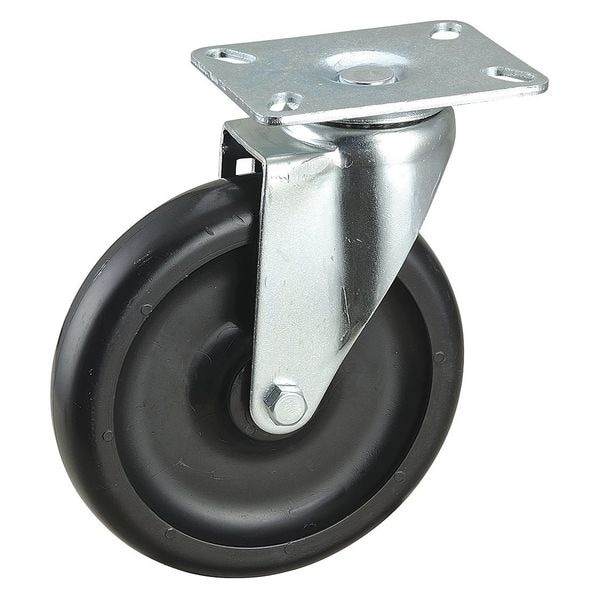

Swivel Plate Caster, 400 lb., Plate Type A

  • Mfr # DCIB06041S002

  • Zoro # G4806313

product price:  $8.95
/ea

Key Features

Caster Frame Material
Steel
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Load Rating
400 lb
Wheel Dia.
6 in
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DCIB06041S002
Zoro #
G4806313
UPC #
190735901113
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Stem Dia.
No Stem
Wheel Width
1 1/4 in
Overall Height
7-3/8in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Height
7 5/16 in
Mounting Plate Thickness
5/32in

Details

Caster Frame Material
Steel
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Load Rating
400 lb
Replacement Wheel
IB0605206G
Caster Stem Type
No Stem/Plate Included
Core Color
Black
Standards
ANSI, ANSI ICWM
Item
Plate Caster
Caster Brake Included
No
Wheel Color
Black
Non-Marking
Yes
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Extended Lead
No
Caster Plate Hole Pattern
A
Thread Guards
No
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Number of Wheels
1
Caster Temp. Range Available
Yes
System of Measurement
Inch
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Compatible With
IB0605206G
Load Capacity - Maximum
400 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
