  6. Swivel Plate Caster, Cast Iron, 5 in., 1200 lb., D

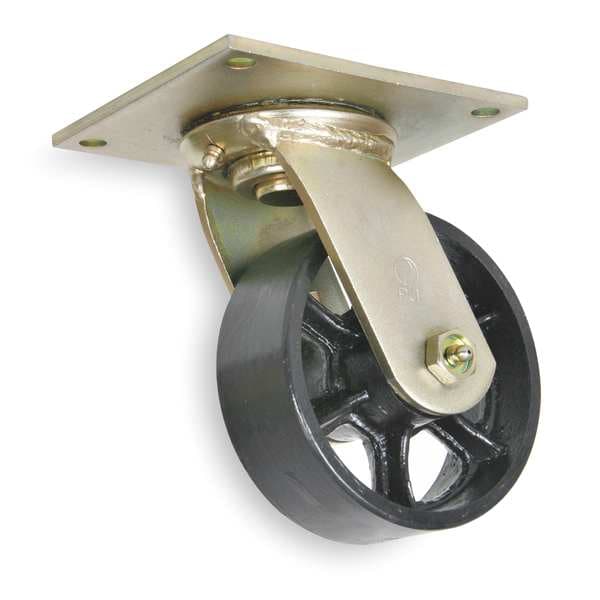

Zoro Select Swivel Plate Caster, Cast Iron, 5 in., 1200 lb., D 1NVH4 - main

Swivel Plate Caster, Cast Iron, 5 in., 1200 lb., D

  • Mfr # 1NVH4

  • Zoro # G0872462

product price:  $29.49
/ea

Key Features

Caster Frame Material
Steel
Caster Brake Included
No
Mounting Bolt Dia.
3/8 in
Thread Guards
No
Caster Plate Hole Pattern
D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1NVH4
Zoro #
G0872462
UPC #
190735404836
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Wheel Dia.
5 in
Wheel Width
2 in
Overall Height
6-1/2in
Mounting Height
6 1/2 in
Mounting Plate Size
5 in x 5 1/2 in
Mounting Plate Thickness
15/64in

Details

Caster Frame Material
Steel
Caster Brake Included
No
Thread Guards
No
Caster Plate Hole Pattern
D
Wheel Color
Black
Load Rating
1200 lb
Frame Finish
Zinc Chromate
Number of Wheels
1
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Item
Plate Caster
Caster Temp. Range Available
No
Core Color
Black
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Non-Marking
Yes
System of Measurement
Inch
Caster Brake Type
No Brake
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Tread Shape
Standard
Wheel Core Material
Iron
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Extra Hard
Wheel Bearing Type
Roller
Wheel/Tread Material
Iron
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel/Tread Color
Black
Load Capacity - Maximum
1,200 lb

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
