  11. Swivel Plate Caster, Nylon, 3 in., 660 lb.
Zoro Select Swivel Plate Caster, Nylon, 3 in., 660 lb. LH-SPO 75K-FI - main

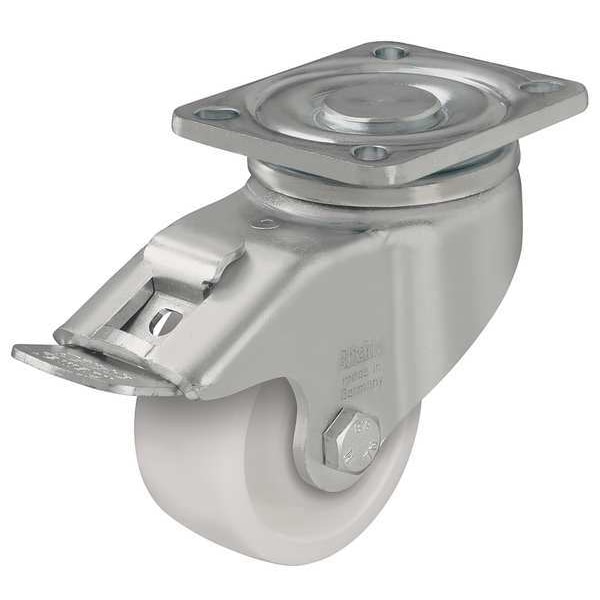

Swivel Plate Caster, Nylon, 3 in., 660 lb.

  • Mfr # LH-SPO 75K-FI

  • Zoro # G6419077

product price: $97.45
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
Total Lock
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-SPO 75K-FI
Zoro #
G6419077
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
4 5/8 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
4-5/8in
Swivel Radius
82.5 mm
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Length
3.156 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Width
2.375 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
Total Lock
Load Rating
660 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
White
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Caster Temp. Range Available
No
Standards
RoHS, ICWM
Wheel Color
White
Frame Finish
Zinc Plated
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. SPO 75/15K
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Tread Color
White
Includes
Stop-Fix Total-Lock Brake
Tread
Standard
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Load Rating Range
Heavy-Duty
Load Capacity
300 kg
Accessories
Optional: RI-04.01 (Directional Lock)
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Compatible With
SPO 75/15K
Load Capacity - Maximum
660 lb
Brake Location
Rear
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 660 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
