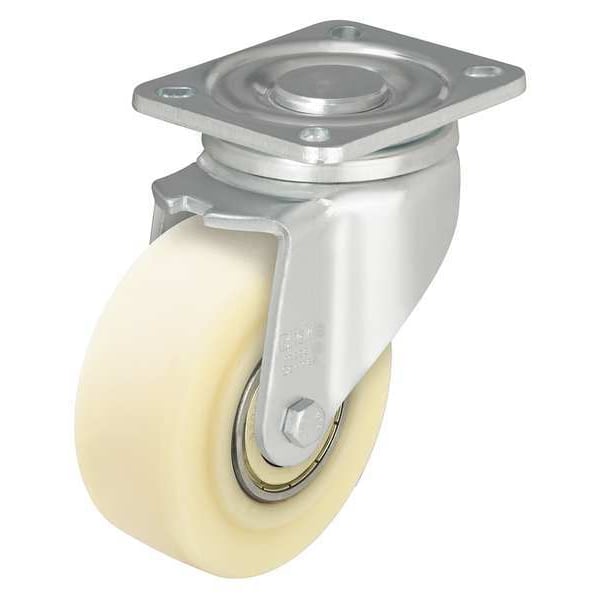

Swivel Plate Caster, Nylon, 4 in., 1540 lb., A

  • Mfr # LH-GSPO 100K-1

  • Zoro # G4588692

product price:  $119.99
/ea
Free Shipping & Returns

Key Features

Application
Commercial, General Purpose, Industrial, Institutional
Overall Height
5-1/2"
Core Color
White
Number of Wheels
1
Load Rating
1540 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-GSPO 100K-1
Zoro #
G4588692
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
5-1/2"
Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Height
5 1/2 in
Swivel Radius
95 mm
For Axle Dia.
10 mm
Mounting Plate Length
3 3/8 in
Mounting Plate Thickness
1/4 in
Bolt Hole Spacing - Width
2.375 in
Overall Wheel Width
1 9/16 in
Bolt Hole Spacing - Length
3.156 in

Details

Application
Commercial, General Purpose, Industrial, Institutional
Core Color
White
Number of Wheels
1
Load Rating
1540 lb
Thread Guards
No
Caster Plate Hole Pattern
A
Caster Brake Included
No
Replacement Wheel
Mfr. No. GSPO 100/20K
Caster Stem Type
No Stem/Plate Included
Item
Plate Caster
Caster Frame Material
Steel
Extended Lead
No
Standards
DIN EN 12542, ISO 14001, ISO 5001, ISO 9001
Outside Bolt Hole Spacing
2-3/8 in x 3-5/32 in
Caster Sub-Type
Swivel
Caster Temp. Range Available
No
Wheel Color
Beige
Inside Bolt Hole Spacing
2-3/8 in x 3-5/32 in
Frame Finish
Zinc Plated
System of Measurement
Inch
Non-Marking
Yes
Caster Brake Type
No Brake
Tread
Standard
Tread Color
Natural Beige
Caster Mounting Type
Plate
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Nylon
Wheel/Tread Color
Beige
Load Capacity
700 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LH Series
ESD Conductive
No
Accessories
Optional: RI-04.01 (Directional Lock)
Load Capacity - Maximum
1,545 lb
Compatible With
GSPO 100/20K
Wheel Hardness Rating
80 Shore D
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 1540 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
