Shop ZORO SELECT

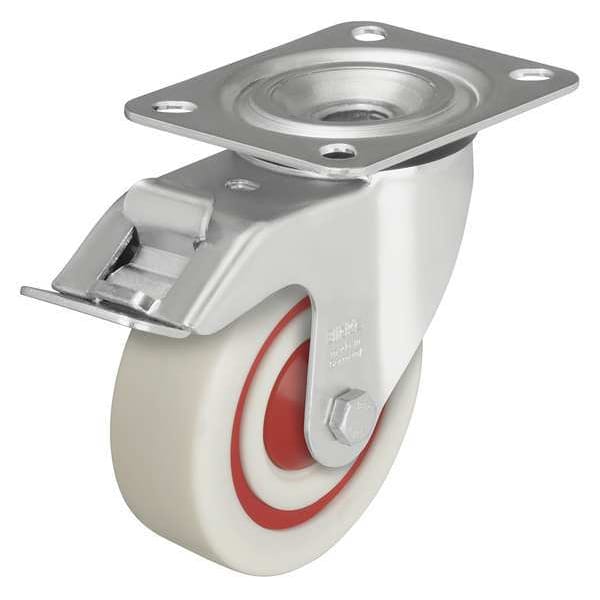

Swivel Plate Caster, Nylon, 4 in., 330 lb., A

  • Mfr # LE-POW 100KF-FI

  • Zoro # G4541844

product price:  $40.69
/ea

Key Features

Frame Finish
Zinc Plated
Wheel Width
1 3/8 in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Caster Brake Included
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-POW 100KF-FI
Zoro #
G4541844
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1 3/8 in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
4-15/16"
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Height
4 15/16 in
Swivel Radius
86 mm
Outside Slot Spacing - Length
3.188 in
Mounting Plate Thickness
3/32 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
3 3/8 in
Inside Slot Spacing - Width
2.188 in
For Axle Dia.
8 mm
Overall Wheel Width
1 3/8 in
Outside Slot Spacing - Width
2.375 in

Details

Frame Finish
Zinc Plated
Caster Brake Included
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/16 in x 3-1/8 in
Standards
DIN EN 12533, ISO 14001, ISO 5001, ISO 9001
Caster Plate Hole Pattern
A
Caster Sub-Type
Swivel
Core Color
White With A Red Ring
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. POW 100/8K-FK
Extended Lead
No
Inside Bolt Hole Spacing
2-1/8 in x 3 in
Caster Stem Type
No Stem/Plate Included
Thread Guards
Yes
Load Rating
330 lb
Item
Plate Caster
Application
Commercial, General Purpose, Industrial, Institutional
Caster Frame Material
Steel
Caster Brake Type
Total Lock
Wheel Color
White
Features
Center Rubber Damping Ring
Caster Mounting Type
Plate
System of Measurement
Metric
Tread
Standard
Non-Marking
Yes
Includes
Stop-Fix Total-Lock Brake
Tread Color
White/ Red Ring
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Tread Shape
Standard
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Swivel Lock Type
Total Lock
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Load Capacity
150 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LE Series
ESD Conductive
No
Accessories
Optional: RI-04.14 (Directional Lock)
Load Capacity - Maximum
330 lb
Compatible With
POW 100/8K-FK
Wheel Hardness Rating
70 Shore D
Brake Location
Rear
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 3/8 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
