  10. /
  11. Swivel Plate Caster, Nylon, 4 in., 400 lb., C
Shop All Plate Casters
Zoro Select

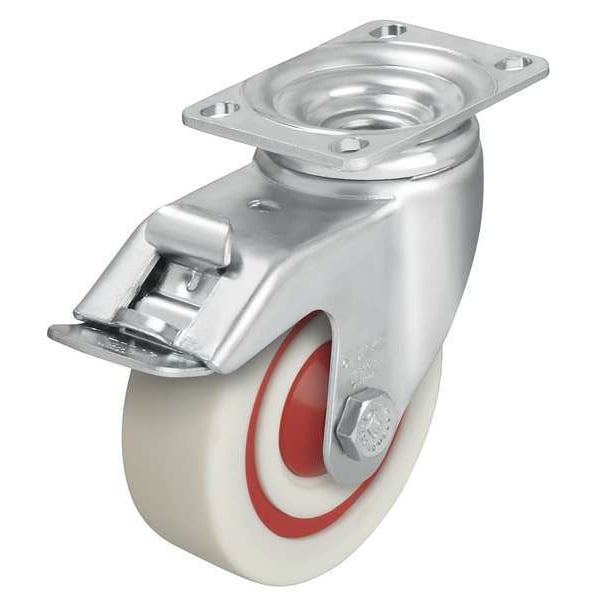

Swivel Plate Caster, Nylon, 4 in., 400 lb., C

product price: $36.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Noise Absorbing Nylon With Rubber Damping Ring
See all product information

Product Information

Dimensions

Overall Height 5-1/8 in
Wheel Dia. 4 in
Wheel Width 1-3/8 in
Stem Dia. No Stem
Plate Size 2-1/2" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2 in x 3-5/8 in
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Height 4 15/16 in
Swivel Radius 3-7/16 in

Details

Caster Brake Included Yes
Caster Load Rating Range Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Noise Absorbing Nylon With Rubber Damping Ring
Load Rating 400 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Thickness 0.138 in
Caster Wheel Bearings Precision Ball
Caster Product Group Swivel Caster With Brake
Plate Caster Bolt Hole Pattern C
Extended Lead No
Caster Core Material Rubber
Caster Frame Material Steel
Caster Raceway Double Ball
Plate Thickness 1/8"
Item Swivel Plate Caster With Brake
Frame Finish Zinc Plated
Application Retail, Industrial, Commercial
Caster Brake Type Total Lock Brake
Caster Plate Hole Pattern C
Wheel Color White
Caster Temp. Range Available No
Replacement Wheel Mfr. No. POW100/10K-FK
Durometer 70 Shore D
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Thread Guards Yes
Core Color White With A Red Ring
Features American Standard Plate Size
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Frame Material Steel
Caster Swivel Lock Type Total-Lock
Non-Marking Yes
Caster Mounting Type Plate
System of Measurement Inch
Tread Color White/ Red Ring
Standards RoHS, ICWM
Caster Temp. Range -15 Degrees To 175 Degrees F
Tread Standard
Includes Stop-Fix Total-Lock Brake
Wheel Bearing Type Precision Ball
Includes Thread Guards Yes
Wheel/Tread Hardness Rating Hard
Number of Mounting Holes 4
Wheel/Tread Hardness 70 Shore D
Swivel Construction Kingpin
Tread Shape Standard
Mounting Plate Bolt Hole Pattern D
Wheel Core Material Nylon With Elastic Rubber Ring
Swivel Lock Type Total Lock
Swivel Raceway Type Double Ball
Wheel/Tread Material Nylon
Wheel/Tread Color White
Series L Series
Caster Break Type Stop Fix Brake (Total Lock)
Accessories Optional: RI-03.12 (Directional Lock)
Resistant To High Chemical Resistance To Many Aggressive Substances
ESD Conductive No
Load Capacity 400 lb

Description

Swivel, Standard Plate Caster, Load Rating 400 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 15/16 in, Wheel Width 1 3/8 in, Wheel/Tread Material Nylon, Wheel Core Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
