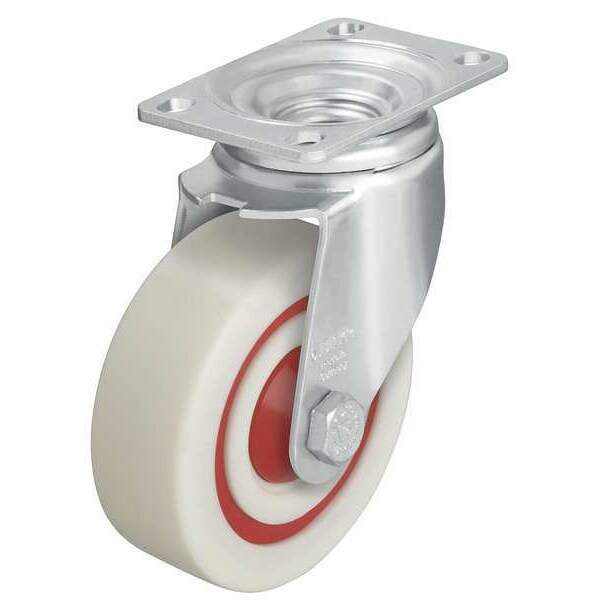

Zoro Select Swivel Plate Caster, Nylon, 4 in., 400 lb., Wht L-POW 100KF-12 - main

Swivel Plate Caster, Nylon, 4 in., 400 lb., Wht

  • Mfr # L-POW 100KF-12

  • Zoro # G7241394

product price:  $35.89
/ea

Key Features

Replacement Wheel
Mfr. No. POW 100/10K-FK
Stem Dia.
No Stem
Extended Lead
No
Caster Temp. Range Available
No
Load Rating
400 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-POW 100KF-12
Zoro #
G7241394
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
9 mm
Wheel Width
1 3/8 in
Overall Height
5-1/8in
Wheel Dia.
4 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
5 1/8 in
Swivel Radius
3-7/16 in
Mounting Plate Length
3 5/8 in
Mounting Plate Width
2 1/2 in
For Axle Dia.
8 mm
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
Overall Wheel Width
1 3/8 in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in

Details

Replacement Wheel
Mfr. No. POW 100/10K-FK
Extended Lead
No
Item
Swivel Caster
Caster Temp. Range Available
No
Load Rating
400 lb
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Features
American Standard Plate Size
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Wheel Color
White
Core Color
White With A Red Ring
Caster Brake Included
No
Thread Guards
Yes
Number of Wheels
1
Application
Commercial, General Purpose, Industrial, Institutional
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Frame Material
Steel
Tread
Standard
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Standards
RoHS, ICWM
System of Measurement
Inch
Tread Color
White/ Red Ring
Non-Marking
Yes
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel Core Material
Rubber
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Load Capacity
400 lb
Series
L Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-03.12 (Directional Lock)
ESD Conductive
No
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
440 lb
Compatible With
POW 100/10K-FK
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 3/8 in, Wheel/Tread Material Nylon, Wheel Core Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
