  11. Swivel Plate Caster, Phenolic, 6 in., 1200 lb, B
Shop All Plate Casters
Zoro Select

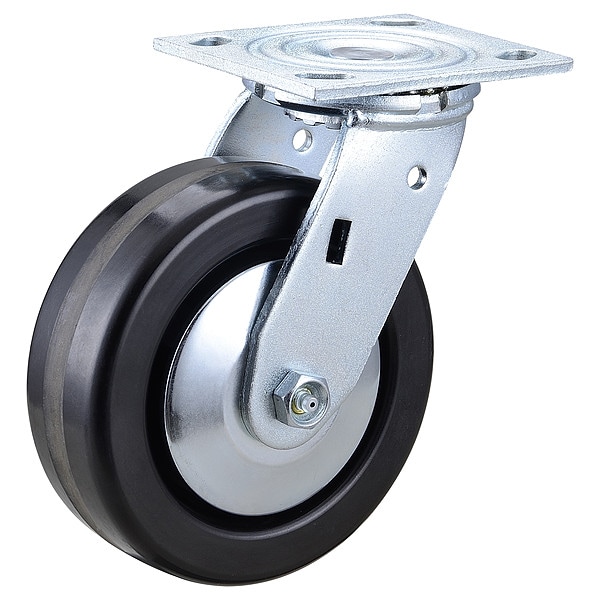

Swivel Plate Caster, Phenolic, 6 in., 1200 lb, B

product price: $12.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Medium-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Phenolic
See all product information

Product Information

Dimensions

Overall Height 7-1/2"
Wheel Dia. 6 in
Wheel Width 2 in
Stem Dia. No Stem
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"
Mounting Plate Size 4 in x 4 1/2 in
Mounting Height 7 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Medium-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Phenolic
Load Rating 1200 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Wheel Bearings Roller
Caster Plate Thickness 15/64"
Caster Product Group Swivel Caster
Caster Raceway Double Ball
Plate Thickness 15/64"
Frame Material Steel
Caster Plate Hole Pattern B
Caster Frame Material Steel
Core Color Black
Durometer 90 Shore D
Caster Core Material Phenolic
Inside Bolt Hole Spacing 3 in x 3 in
Caster Swivel Lock Type No Lock Included
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Frame Finish Zinc Plated
Plate Caster Bolt Hole Pattern B
Caster Temp. Range Available No
Wheel Color Black
Item Debris-Resistant Standard Plate Caster
Thread Guards Yes
Non-Marking Yes
Caster Brake Type No Brake Included
Wheel Core Material Phenolic
Includes Thread Guards Yes
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Hard
Mounting Plate Bolt Hole Pattern B
Wheel/Tread Hardness 85 Shore D
Load Rating Range 1000 to 2999 lb
Swivel Lock Type No Lock Included
Number of Mounting Holes 4
Tread Shape Standard
Wheel Bearing Type Roller
Swivel Raceway Type Double Ball
Wheel/Tread Material Phenolic
Wheel/Tread Color Black

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
