  6. Swivel Plate Caster, Rubber, 3-1/2 in, 250 lb, C

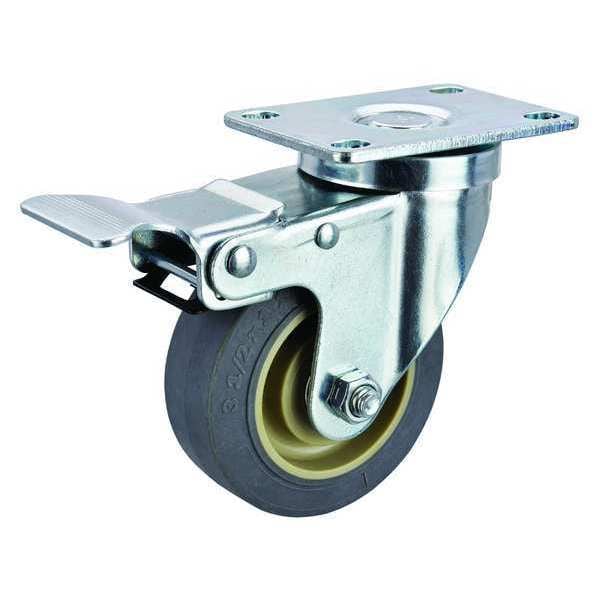

Zoro Select Swivel Plate Caster, Rubber, 3-1/2 in, 250 lb, C P12S-PRP035B-12-TB-001 - main

Swivel Plate Caster, Rubber, 3-1/2 in, 250 lb, C

  • Mfr # P12S-PRP035B-12-TB-001

  • Zoro # G2599816

product price:  $14.85
/ea

Key Features

Stem Dia.
No Stem
Caster Brake Included
Yes
Overall Height
4-11/16in
Caster Sub-Type
Swivel
Wheel Dia.
3 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP035B-12-TB-001
Zoro #
G2599816
UPC #
190735413586
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
4-11/16in
Wheel Dia.
3 1/2 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
4 11/16 in
Swivel Radius
3 in
Mounting Plate Thickness
5/32in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 1/4 in

Details

Caster Brake Included
Yes
Caster Sub-Type
Swivel
Load Rating
250 lb
Caster Plate Hole Pattern
C
Features
Corrosion Resistant
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Temp. Range Available
No
Wheel Color
Gray
Standards
ANSI ICWM
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
Total Lock
Thread Guards
No
Core Color
Gray
Number of Wheels
1
Item
Swivel Caster with Total Lock
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Frame Material
Steel
Application
Retail, Industrial, Commercial
Includes
Total-Lock Brake
Caster Mounting Type
Plate
Tread
Standard
Replacement Wheel
Mfr. No. P-PRP-035x013/038B
Non-Marking
Yes
System of Measurement
Inch
Tread Color
Gray
Tread Shape
Standard
Wheel/Tread Material
Thermoplastic Rubber
Includes Thread Guards
No
Number of Mounting Holes
4
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Swivel Lock Type
Total Lock
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Color
Gray
Extended Lead
No
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
250 lb
Series
P12 Series
Caster Features
Debris-Resistant
Load Capacity - Maximum
250 lb
Wheel Hardness Rating
90 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Rear
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
