  11. Swivel Plate Caster, Rubber, 3-1/2 in, 350 lb

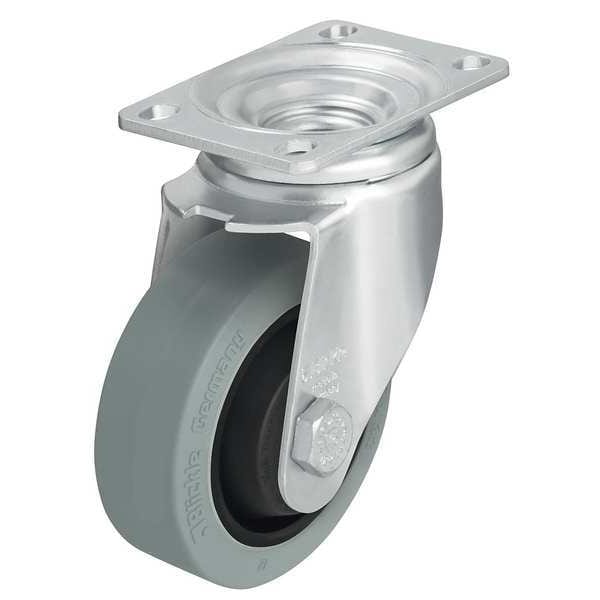

Zoro Select Swivel Plate Caster, Rubber, 3-1/2 in, 350 lb L-POEV 89KF-12-SG - main

Swivel Plate Caster, Rubber, 3-1/2 in, 350 lb

  • Mfr # L-POEV 89KF-12-SG

  • Zoro # G5237163

product price: $33.65
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-POEV 89KF-12-SG
Zoro #
G5237163
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 1/2 in
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
9 mm
Stem Dia.
No Stem
Overall Height
4-11/16in
Swivel Radius
3-3/16 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
8 mm
Outside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 1/2 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
No Brake
Load Rating
350 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Temp. Range Available
No
Frame Finish
Zinc Plated
Caster Stem Type
No Stem/Plate Included
Wheel Color
Black
Replacement Wheel
Mfr. No. POEV 89x32/10K-SG-FK
Application
Retail, Industrial, Commercial
Extended Lead
No
Thread Guards
Yes
Features
American Standard Plate Size
Caster Brake Included
No
Tread Color
Gray
Standards
RoHS, ICWM
Tread
Standard
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Load Rating Range
Light-Medium Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
350 lb
Series
L Series
ESD Conductive
No
Accessories
Optional: RI-03.12 (Directional Lock)
Compatible With
POEV 89X32/10K-SG
Load Capacity - Maximum
355 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant
Wheel Bearing Material
Steel
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
