  11. Swivel Plate Caster, Rubber, 5 in., 400 lb.
Zoro Select Swivel Plate Caster, Rubber, 5 in., 400 lb. 1NWJ4 - main

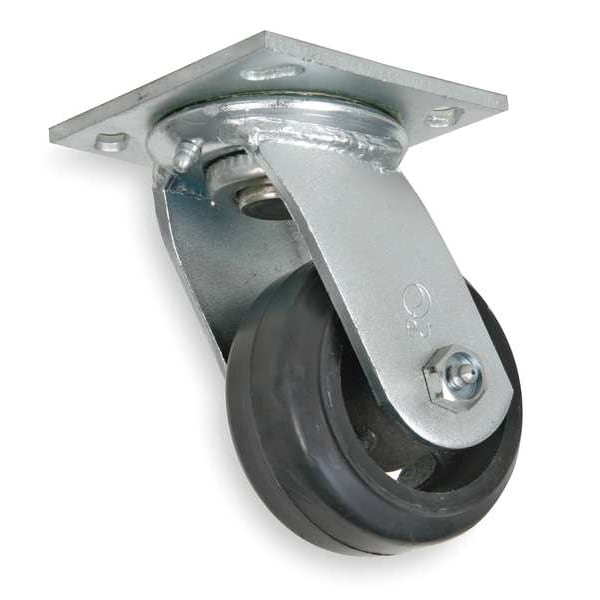

Swivel Plate Caster, Rubber, 5 in., 400 lb.

  • Mfr # 1NWJ4

  • Zoro # G2177025

product price: $32.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1NWJ4
Zoro #
G2177025
UPC #
190735406342
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
6-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
400 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Black
Features
Antistatic
Frame Finish
Zinc Plated
Caster Temp. Range Available
No
Caster Stem Type
No Stem/Plate Included
Includes
Spanner Bushing
Thread Guards
No
Standards
ANSI ICWM
Caster Brake Included
No
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Wheel Core Material
Iron
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Load Capacity - Maximum
400 lb

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
