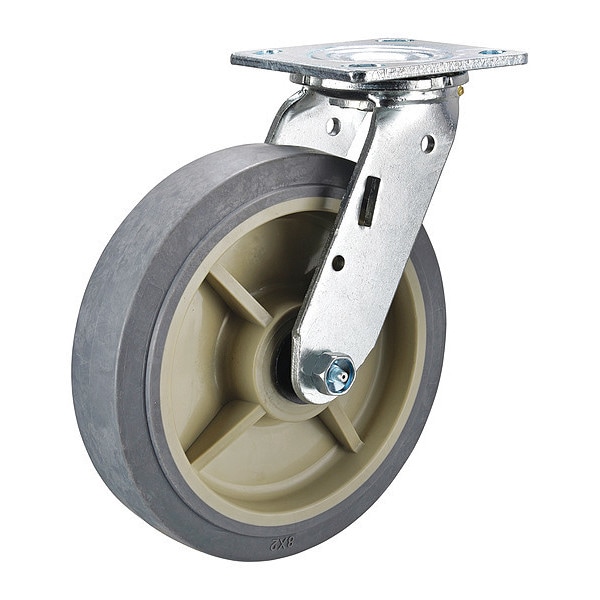

Zoro Select Swivel Plate Caster, Rubber, 8 in., 675 lb. P21S-PRP080R-14-EL - main

Swivel Plate Caster, Rubber, 8 in., 675 lb.

  • Mfr # P21S-PRP080R-14-EL

  • Zoro # G2865931

product price:  $45.15
/ea

Key Features

Core Color
Gray
Frame Finish
Zinc Plated
Wheel Color
Gray
Load Rating
600 lb
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP080R-14-EL
Zoro #
G2865931
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Swivel Radius
6 1/4 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in

Details

Core Color
Gray
Frame Finish
Zinc Plated
Wheel Color
Gray
Load Rating
600 lb
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Features
Electircally Conductive
Number of Wheels
1
Non-Marking
Yes
Caster Sub-Type
Swivel
Caster Brake Type
No Brake
Includes
Electrically Conductive Tread
Caster Plate Hole Pattern
B
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Standards
ANSI ICWM
Caster Brake Included
No
Thread Guards
No
Caster Temp. Range Available
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Item
Swivel Caster
System of Measurement
Inch
Caster Mounting Type
Plate
Tread
Standard
Replacement Wheel
Mfr. No. P-RP-080x020/050R-EL
Tread Color
Gray
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Includes Thread Guards
No
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Load Rating Range
Light-Medium Duty
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
600 lb
ESD Conductive
Yes
Accessories
Optional: P-DL21-14 (Directional Lock)
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
600 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Mounting Hole Type
Slot
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
