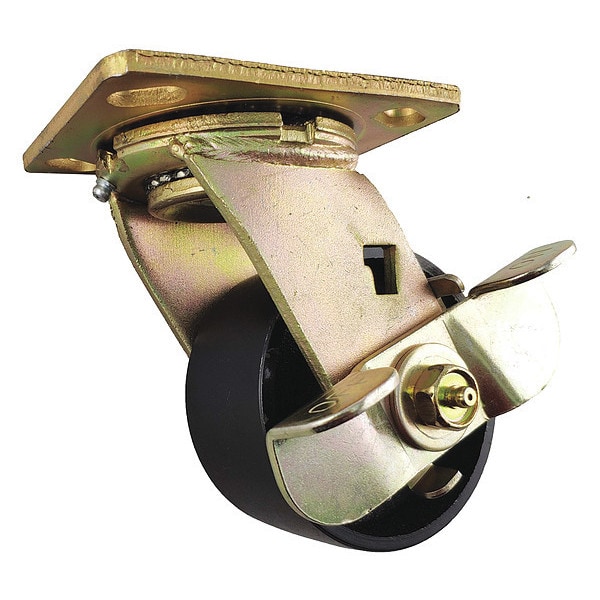

Zoro Select Swivel Plate Caster, Steel, 4 in., 1000 lb. 1NVC1 - main

Swivel Plate Caster, Steel, 4 in., 1000 lb.

  • Mfr # 1NVC1

  • Zoro # G2068954

product price:  $29.89
/ea

Key Features

Number of Wheels
1
Wheel Width
2 in
Load Rating
1000 lb
Caster Sub-Type
Swivel
Thread Guards
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1NVC1
Zoro #
G2068954
UPC #
190735404355
Country of Origin
China

Dimensions

Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
5-5/8in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
15/64in

Details

Number of Wheels
1
Load Rating
1000 lb
Caster Sub-Type
Swivel
Thread Guards
No
Caster Brake Type
Side Brake
Item
Plate Caster
Caster Brake Included
Yes
Caster Plate Hole Pattern
B
Wheel Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
No
Frame Finish
Zinc Chromate
Caster Frame Material
Steel
Core Color
Black
Inside Bolt Hole Spacing
3 in x 3 in
System of Measurement
Inch
Non-Marking
Yes
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Steel
Tread Shape
Standard
Wheel/Tread Material
Steel
Wheel/Tread Color
Black
Load Capacity - Maximum
1,000 lb

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
