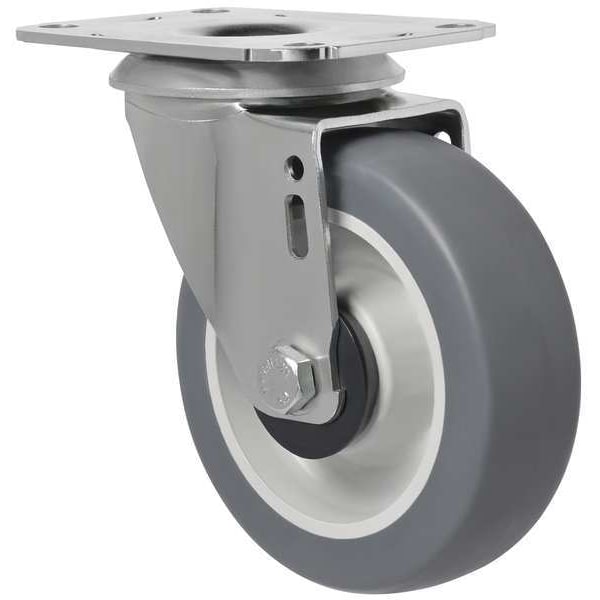

Swivel Plate Caster, Therm Rubber, 4 in, 176 lb

product price: $12.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 4-3/4"
Wheel Dia. 4 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Caster Plate Size 2-3/4" x 3-3/4"
Mounting Bolt Dia. 5/16 in
Plate Size 2-3/4" x 3-3/4"
Mounting Height 4 11/16 in
Mounting Plate Size 2 3/4 in x 3 3/4 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 175 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Raceway Double Ball
Caster Plate Hole Pattern D
Caster Core Material Polypropylene
Features Antistatic
Wheel Color Gray
Standards ISO 9001
Caster Temp. Range Available No
Durometer 80 Shore A
Caster Product Group Swivel Caster
Frame Material Steel
Plate Caster Bolt Hole Pattern D
Core Color Gray
Caster Frame Material Steel
Item Debris-Resistant Standard Plate Caster
Caster Wheel Bearings Delrin
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Thread Guards Yes
Caster Swivel Lock Type No Lock Included
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Plate Thickness 7/64"
Frame Finish Zinc Plated
Caster Plate Thickness 7/64"
Caster Brake Type No Brake Included
Non-Marking Yes
Wheel/Tread Hardness 75 Shore A
Number of Mounting Holes 4
Wheel Bearing Type Delrin
Tread Shape Standard
Load Rating Range 0 to 299 lb
Wheel/Tread Hardness Rating Soft
Swivel Lock Type No Lock Included
Swivel Raceway Type Double Ball
Mounting Plate Bolt Hole Pattern D
Wheel Core Material Plastic
Swivel Construction Kingpin
Includes Thread Guards Yes
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
