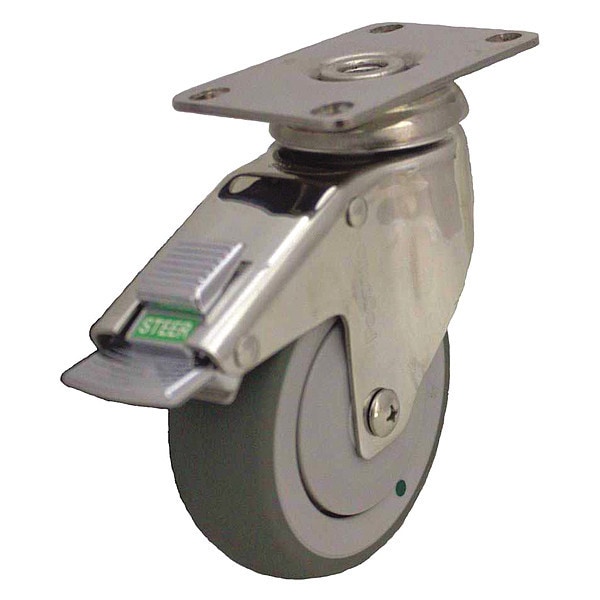

Zoro Select Swivel Plate Caster w/2-Position Directional Lock, 4 in. P14SX-RP040K-12-DL-AM - main

Swivel Plate Caster w/2-Position Directional Lock, 4 in.

  • Mfr # P14SX-RP040K-12-DL-AM

  • Zoro # G0452207

product price:  $44.75
/ea

Key Features

Wheel Width
1 1/4 in
Caster Frame Material
Stainless Steel
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Polished
Includes
4-Position Directional Lock, Thread Guards, Anti-Microbial Tread
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P14SX-RP040K-12-DL-AM
Zoro #
G0452207
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Wheel Dia.
4 in
Overall Height
5-7/16in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
5 7/16 in
Swivel Radius
3-9/16 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Thickness
1/8in
For Axle Dia.
8 mm
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Width
1.75 in

Details

Caster Frame Material
Stainless Steel
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Polished
Includes
4-Position Directional Lock, Thread Guards, Anti-Microbial Tread
Core Color
Gray
Item
Swivel Caster with Four Position Swivel Lock
Number of Wheels
1
Application
Animal Cages, Case Carts, Food Service, Institutional Equipment, Laboratory Equipment, Medical Equipment, Pharmaceutical Equipment, Utility Carts
Caster Temp. Range Available
Yes
Caster Brake Included
No
Wheel Color
Gray
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Sub-Type
Swivel
Standards
ANSI ICWM
Features
Anti-Microbial, Corrosion Resistance, Floor Protection, Noise Reduction
Extended Lead
No
Caster Plate Hole Pattern
C
Thread Guards
Yes
Non-Marking
Yes
Load Rating
190 lb
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
Directional Lock
Replacement Wheel
Mfr. No. P-RP-040x013/031K
Tread Color
Gray
Caster Mounting Type
Plate
Tread
Standard
System of Measurement
Inch
Tread Shape
Crown
Wheel/Tread Hardness Rating
Firm
Operating Temperature Range
-30 Degrees to 180 Degrees F
Wheel Bearing Type
Ball
Wheel Core Material
Polypropylene
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Load Rating Range
Light-Duty
Swivel Lock Type
Directional Lock
Swivel Construction
Kingpin
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Series
P14X Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
190 lb
Caster Features
Antimicrobial, Corrosion-Resistant
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
190 lb
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Brake Location
Rear
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
210 Degrees F

Description

Swivel, Plate Caster, Load Rating 190 lb, Swivel Lock Type Directional Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
