  6. Swivel Plate Caster w/Brake, 300 lb., S Steel

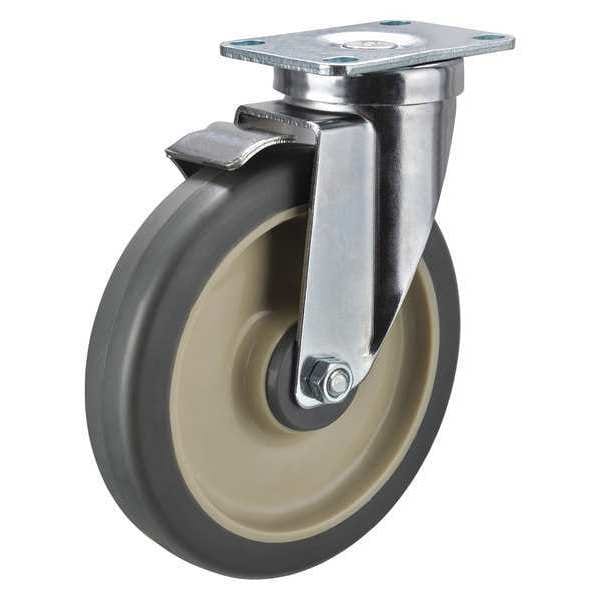

Zoro Select Swivel Plate Caster w/Brake, 300 lb., S Steel P12SX-RP040B-12-WB-001 - main

Swivel Plate Caster w/Brake, 300 lb., S Steel

  • Mfr # P12SX-RP040B-12-WB-001

  • Zoro # G6471263

product price:  $78.69
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P12SX-RP040B-12-WB-001
Zoro #
G6471263
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-3/8in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/16in
Stem Dia.
No Stem
Swivel Radius
3-1/4 in
Mounting Plate Length
2 1/2 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Polished
Caster Stem Type
No Stem/Plate Included
Thread Guards
Yes
Wheel Color
Gray
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Extended Lead
No
Caster Temp. Range Available
Yes
Includes
Thread Guards
Standards
ANSI ICWM
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. P-PRP-040x013/038K
Tread
Standard
Tread Color
Gray
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel Core Material
Polypropylene
ESD Conductive
No
Load Capacity
300 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12X Series
Load Capacity - Maximum
300 lb
Caster Features
Corrosion-Resistant
Brake Location
Side
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 300 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
