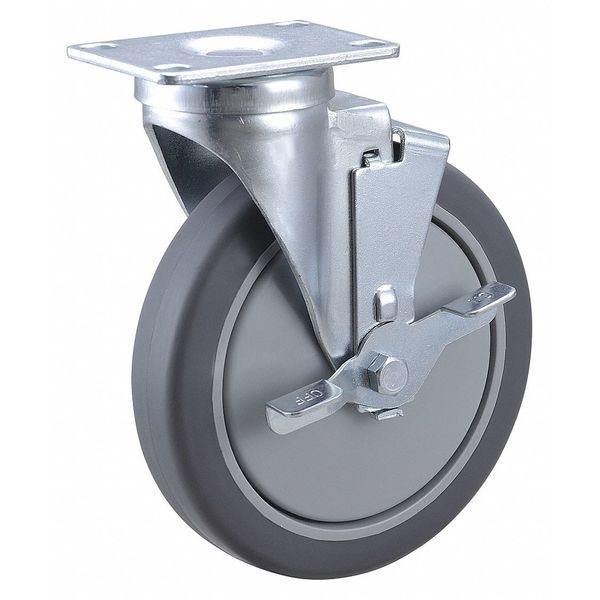

Swivel Plate Caster w/Brake, Polyurethanen, 6in, 300lb

  • Mfr # 3ENY1
  • Zoro # G3300254
product price:
$
28.99
/ea

Key Features

Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Caster Brake Included
Yes
Caster Plate Hole Pattern
C
Caster Brake Type
Side Brake
Load Rating
300 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3ENY1
Zoro #
G3300254
UPC #
190735900130
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
7-21/64"
Wheel Dia.
6 in
Stem Dia.
No Stem
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Height
7 5/16 in
Mounting Plate Thickness
5/32in

Details

Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Caster Brake Included
Yes
Caster Plate Hole Pattern
C
Caster Brake Type
Side Brake
Load Rating
300 lb
Includes
Thread guards
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
Gray
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Item
Plate Caster
Number of Wheels
1
Non-Marking
Yes
Wheel Color
Gray
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Thread Guards
Yes
Frame Finish
Zinc Plated
Standards
ANSI, ANSI ICWM
Includes Thread Guards
Yes
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Firm
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Load Capacity - Maximum
300 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
