Shop ZORO SELECT

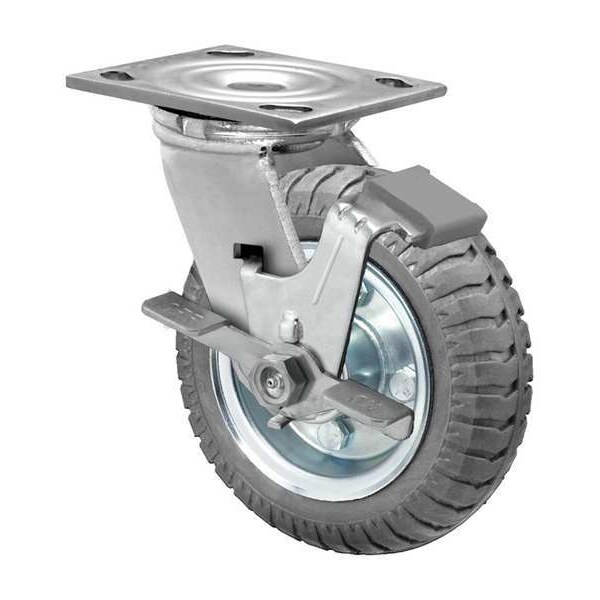

Swivel Plate Caster w/Brk, 250 lb., Gray

  • Mfr # 16SV06228SFBAG
  • Zoro # G5765401
product price:
$
87.15
/ea

Key Features

Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Caster Brake Type
Side Brake
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16SV06228SFBAG
Zoro #
G5765401
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/4"
Wheel Width
2 in
Stem Dia.
No Stem
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Caster Brake Type
Side Brake
Number of Wheels
1
Caster Sub-Type
Swivel
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Thread Guards
No
Application
All Purpose Industrial and Commercial Casters
Replacement Wheel
Mfr. No. SV0622808G
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Gray
Caster Frame Material
Steel
Load Rating
250 lb
Core Color
Silver
Caster Plate Hole Pattern
B
Item
Plate Caster
Caster Temp. Range Available
Yes
System of Measurement
Inch
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel Core Material
Steel
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Polyurethane
Compatible With
SV0622808G
Load Capacity - Maximum
250 lb
Wheel Hardness Rating
60 Shore A
Wheel Bearing Type
Ball
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
