  6. Swivel Plate Caster w/Total-Lock, TPR, 3 in, 165 lb
Zoro Select Swivel Plate Caster w/Total-Lock, TPR, 3 in, 165 lb P14SX-RP030K-12-TB-AM - main

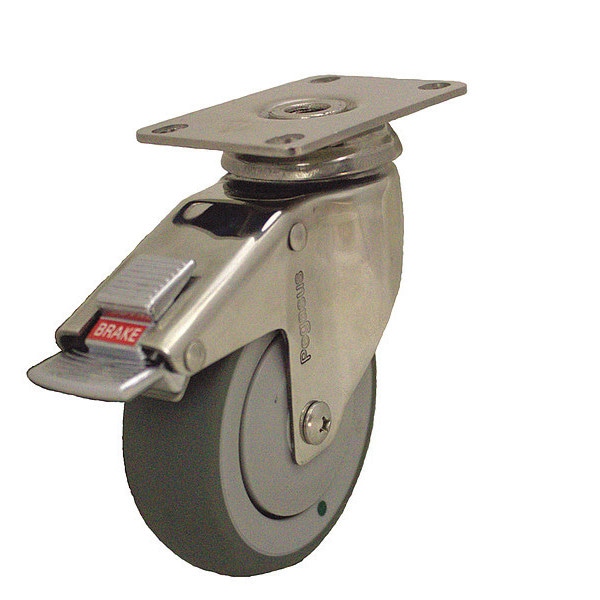

Swivel Plate Caster w/Total-Lock, TPR, 3 in, 165 lb

  • Mfr # P14SX-RP030K-12-TB-AM

  • Zoro # G0719424

product price:  $43.79
/ea

Key Features

Extended Lead
No
Wheel Color
Gray
Core Color
Gray
Features
Anti-Microbial, Corrosion Resistance, Floor Protection, Noise Reduction
Caster Stem Type
No Stem/Plate Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P14SX-RP030K-12-TB-AM
Zoro #
G0719424
UPC #
-
Country of Origin
China

Dimensions

Overall Height
4-7/16in
Wheel Width
1 1/4 in
Stem Dia.
No Stem
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Mounting Height
4 7/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Swivel Radius
2-15/16 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
8 mm
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Thickness
1/8in
Mounting Plate Length
2 1/2 in

Details

Extended Lead
No
Wheel Color
Gray
Core Color
Gray
Features
Anti-Microbial, Corrosion Resistance, Floor Protection, Noise Reduction
Caster Stem Type
No Stem/Plate Included
Application
Animal Cages, Case Carts, Food Service, Institutional Equipment, Laboratory Equipment, Medical Equipment, Pharmaceutical Equipment, Utility Carts
Standards
ANSI ICWM
Non-Marking
Yes
Caster Plate Hole Pattern
C
Thread Guards
Yes
Number of Wheels
1
Frame Finish
Polished
Caster Frame Material
Stainless Steel
Includes
Thread Guards
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Brake Type
Total Lock
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Load Rating
165 lb
Item
Swivel Caster with Total Lock
Tread Color
Gray
Replacement Wheel
Mfr. No. P-RP-030x013/031K
Caster Mounting Type
Plate
Tread
Standard
System of Measurement
Inch
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Operating Temperature Range
-30 Degrees to 180 Degrees F
Load Rating Range
Light-Duty
Wheel/Tread Hardness Rating
Firm
Tread Shape
Crown
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Swivel Lock Type
Total Lock
Wheel Core Material
Polypropylene
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Load Capacity
165 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
P14X Series
Caster Features
Antimicrobial, Corrosion-Resistant
Load Capacity - Maximum
165 lb
Wheel Hardness Rating
85 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
210 Degrees F

Description

Swivel, Plate Caster, Load Rating 165 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
