Zoro Select Swivel Plate Cstr, Delrin, Stainless Steel P21SX-RP040D-14-AM - main

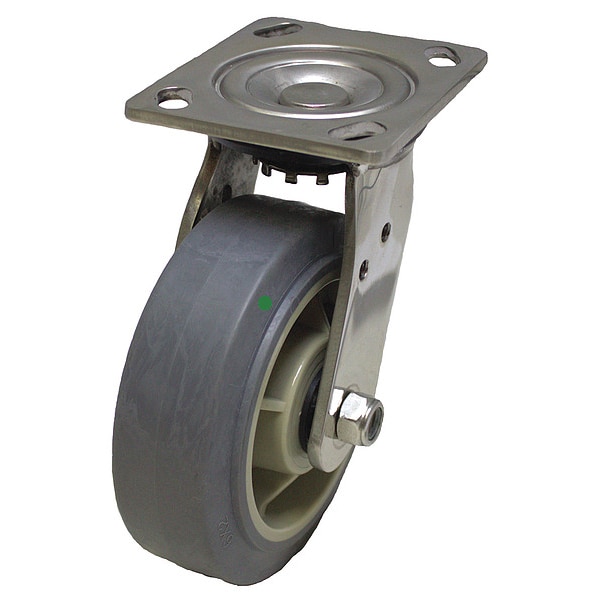

Swivel Plate Cstr, Delrin, Stainless Steel

  • Mfr # P21SX-RP040D-14-AM

  • Zoro # G0679996

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Extended Lead
No
Caster Sub-Type
Swivel
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21SX-RP040D-14-AM
Zoro #
G0679996
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Overall Height
5-5/8in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Stem Dia.
No Stem
Swivel Radius
3 5/8 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Mounting Plate Thickness
1/4in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Extended Lead
No
Item
Swivel Caster
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Load Rating
300 lb
Features
Antimicrobial Tread
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Number of Wheels
1
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-RP-040x020/050DX-AM
Non-Marking
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Standards
ANSI ICWM
Frame Finish
Stainless Steel
Core Color
Gray
Caster Frame Material
Stainless Steel
Caster Plate Hole Pattern
B
Wheel Color
Gray
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
No Brake
Tread Color
Gray
Includes
Anti-Microbial Tread
System of Measurement
Inch
Caster Mounting Type
Plate
Tread
Standard
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Bearing Type
Delrin
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Series
P21X Series
Load Capacity
300 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Accessories
Optional: P-DL21X-14 (Directional Lock)
Load Capacity - Maximum
300 lb
Wheel Hardness Rating
90 Shore A
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Antimicrobial, Corrosion-Resistant
Wheel Core Type
Solid
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-45 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
