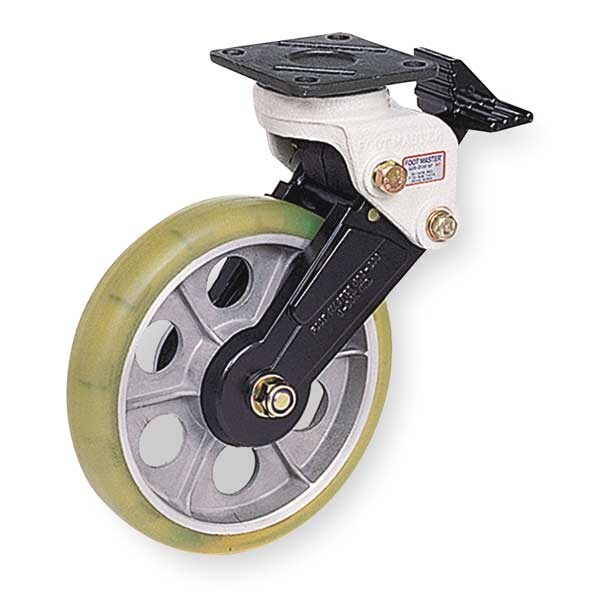

Swivel Plate Shock-Absorbing Cstr, 550 lb

  • Mfr # GDS-200B-SF

  • Zoro # G2283705

product price:  $188.99
/ea
Free Shipping & Returns

Key Features

Features
Shock Absorbing
Wheel Color
Clear
Caster Plate Hole Pattern
D
Caster Temp. Range Available
Yes
Caster Frame Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GDS-200B-SF
Zoro #
G2283705
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Wheel Dia.
8 in
Wheel Width
1 5/8 in
Mounting Bolt Dia.
3/8 in
Overall Height
10-5/8"
Mounting Height
10 3/4 in
Mounting Plate Size
3 3/4 in x 3 3/4 in
Mounting Plate Length
95 mm
Mounting Plate Thickness
6 1/2 mm
Bolt Hole Spacing - Width
11 mm
Bolt Hole Spacing - Length
10 mm
Mounting Plate Width
95 mm
Overall Wheel Width
8 in

Details

Features
Shock Absorbing
Wheel Color
Clear
Caster Plate Hole Pattern
D
Caster Temp. Range Available
Yes
Caster Frame Material
Aluminum
Core Color
Gray
Caster Sub-Type
Swivel
Load Rating
550 lb
Standards
ANSI, CE
Number of Wheels
1
Frame Finish
Powder Coated
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Caster Brake Type
Face Brake
Non-Marking
Yes
Inside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Includes
Mounting Hardware
Item
Plate Caster
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Tread Shape
Donut
Wheel Core Material
Aluminum
Includes Thread Guards
Yes
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Swivel Raceway Type
Double Ball
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Clear
Wheel Type
Solid
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
550 lb
Brake Location
Face
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Rubber, Tile, Vinyl, Wood
Caster Features
Shock-Absorbing
Wheel Bearing Material
Steel
Operating Temperature Range
14 Degrees to 194 Degrees F
Operating Temperature - Maximum
190 Degrees F
Operating Temperature - Minimum
15 Degrees F

Description

Swivel, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 1 5/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Donut
