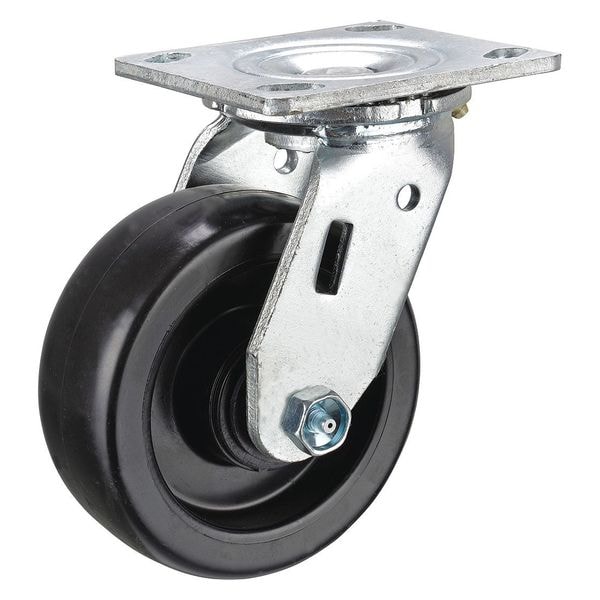

Zoro Select Swivel Plt Cstr, Polypropylene, 6in, 650 lb P21S-PB060R-14-H7 - main

Swivel Plt Cstr, Polypropylene, 6in, 650 lb

  • Mfr # P21S-PB060R-14-H7

  • Zoro # G6082273

product price:  $33.25
/ea

Key Features

Stem Dia.
No Stem
Thread Guards
No
Wheel Width
2 in
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-PB060R-14-H7
Zoro #
G6082273
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Wheel Width
2 in
Overall Height
7-1/4in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/4 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
5 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in
Mounting Plate Thickness
1/4in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in

Details

Thread Guards
No
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
No
Core Color
Black
Item
Swivel Caster
Number of Wheels
1
Non-Marking
Yes
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Load Rating
650 lb
System of Measurement
Inch
Tread Color
Black
Replacement Wheel
Mfr. No. P-PB-060x020/050R
Standards
RoHS, ICWM, NSF
Tread
Standard
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Series
P21 Series
Load Capacity
700 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Wheel Hardness Rating
65 Shore D
Load Capacity - Maximum
700 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
