  6. Swivel Plt Cstr, Polyurethane, 6 in, 300 lb

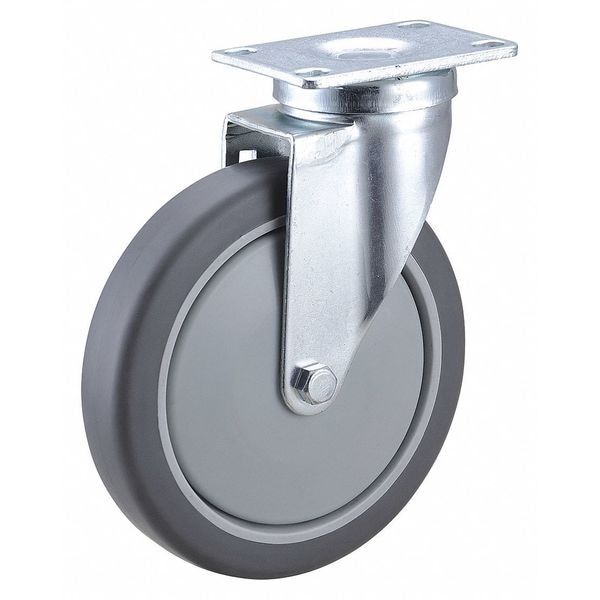

Zoro Select Swivel Plt Cstr, Polyurethane, 6 in, 300 lb 3ENX9 - main

Swivel Plt Cstr, Polyurethane, 6 in, 300 lb

  • Mfr # 3ENX9

  • Zoro # G2678952

product price:  $11.15
/ea

Key Features

Caster Frame Material
Steel
Stem Dia.
No Stem
Overall Height
7-21/64in
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Thread Guards
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3ENX9
Zoro #
G2678952
UPC #
190735899731
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
7-21/64in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
6 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Height
7 5/16 in
Mounting Plate Thickness
5/32in

Details

Caster Frame Material
Steel
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Thread Guards
Yes
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
C
Includes
Thread guards
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Sub-Type
Swivel
Caster Brake Included
No
Core Color
Gray
Wheel Color
Gray
Frame Finish
Zinc Plated
Standards
ANSI, ANSI ICWM
Item
Plate Caster
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Extended Lead
No
Load Rating
300 lb
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
300 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
