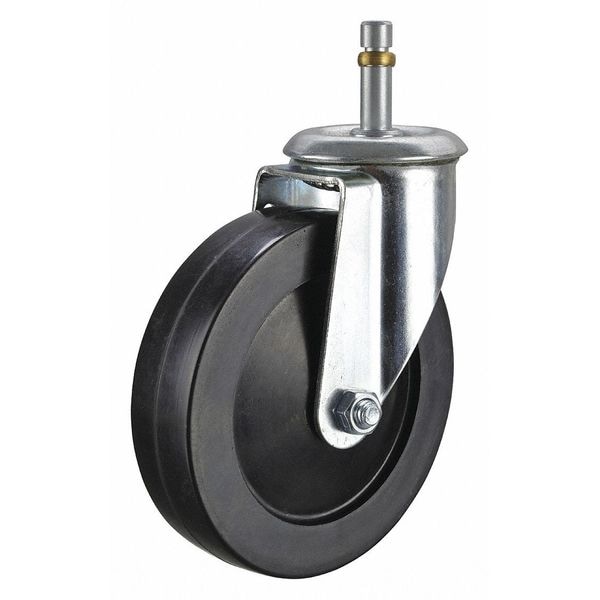

Swivel Stem Caster, Rubber, 5 in., 200 lb.

  • Mfr # P12S-R050D-SG2

  • Zoro # G4811441

product price:
$
12.89
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1 1/4 in
Mounting Height
6 in
Load Rating
200 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-R050D-SG2
Zoro #
G4811441
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Height
6 in
Stem Length
1 7/8 in
Wheel Dia.
5 in
Overall Height
6 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1-7/8 in
Swivel Radius
4 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
200 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Number of Wheels
1
Caster Load Rating Range
Light Duty
Caster Temp. Range
-20 Degrees To 125 Degrees F
Caster Product Group
Swivel Caster
Standards
ANSI ICWM, NSF Listed
Caster Core Material
Rubber
Replacement Wheel
26Y364
Caster Sub-Type
Swivel
Caster Wheel/Tread Material
Solid Rubber
Caster Raceway
Double Ball
Caster Wheel Bearings
Delrin
Caster Brake Included
No
Frame Finish
Zinc Plated
Core Color
Black
Caster Swivel Lock Type
No Lock Included
Includes
Dust Cover
Wheel Color
Black
Caster Wheel Shape
Standard
Caster Temp. Range Available
Yes
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel Core Material
Rubber
Operating Temperature Range
-40 Degrees to 180 Degrees F
Wheel/Tread Color
Black
Tread
Standard
ESD Conductive
No
Load Capacity
175 lb
System of Measurement
Inch
Tread Color
Black
Caster Break Type
No Brake Included
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel/Tread Hardness
70-85 Shore A
Extended Lead
No
Caster Mounting Type
Grip Ring Stem
Series
Pegasus 12
Includes Thread Guards
No
Operating Temperature - Maximum
180 Degrees F
Caster Features
Corrosion-Resistant, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Wheel Hardness Rating
80 Shore A
Load Capacity - Maximum
200 lb
For Surface Type
Tile, Vinyl, Wood

Description

Stem Caster, Swivel Caster, 200 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 6 in Mounting Height, Delrin, 7/16 in x 1-7/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
