  11. Swivel Stem Caster, TPR, 3-1/2 in., 250 lb.

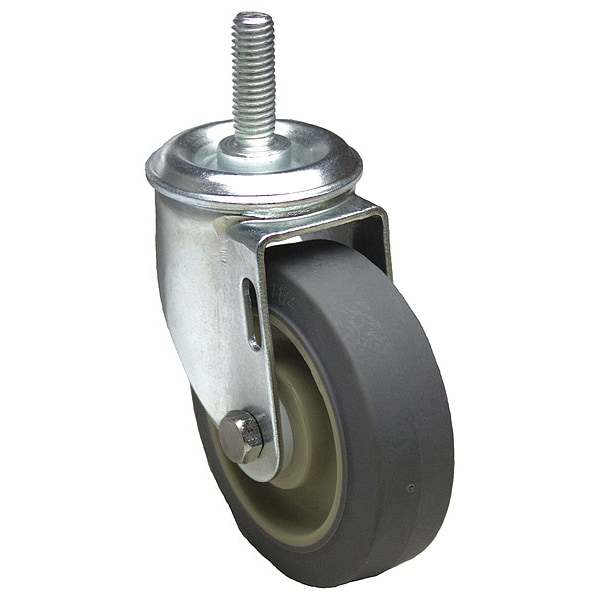

Zoro Select Swivel Stem Caster, TPR, 3-1/2 in., 250 lb. P12S-PRP035D-ST1 - main

Swivel Stem Caster, TPR, 3-1/2 in., 250 lb.

  • Mfr # P12S-PRP035D-ST1

  • Zoro # G4809524

product price: $11.49
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
4 9/16 in
Load Rating
250 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-PRP035D-ST1
Zoro #
G4809524
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
4 9/16 in
Stem Length
1-1/2 in
Thread Size
1/2"-13
Overall Height
4-9/16 in
Caster Thread Size
1/2"-13
Stem Dia.
1/2 in
Wheel Dia.
3-1/2 in
Caster Stem Size
1/2"-13 x 1-1/2 in
Swivel Radius
3 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
250 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Number of Wheels
1
Wheel Color
Gray
Standards
RoHS, ICWM, NSF
Caster Core Material
Polypropylene
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Load Rating Range
Light Duty
Caster Product Group
Swivel Caster
Core Color
Gray
Caster Sub-Type
Swivel
Caster Raceway
Double Ball
Caster Wheel Bearings
Delrin
Includes
Complete Caster
Caster Wheel/Tread Material
Thermoplastic Rubber
Features
Floor Protective, Noise Reduction
Caster Brake Included
No
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-PRP-035x013/038D
Caster Temp. Range Available
Yes
Caster Swivel Lock Type
No Lock Included
Caster Wheel Shape
Standard
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Operating Temperature Range
-45 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
System of Measurement
Inch
Load Capacity
250 lb
Caster Break Type
No Brake Included
ESD Conductive
No
Tread Color
Gray
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Hardness
85-95 Shore A
Caster Mounting Type
Threaded Stem
Series
P12 Series
Tread
Standard
Extended Lead
No
Operating Temperature - Maximum
180 Degrees F
Load Capacity - Maximum
250 lb
Operating Temperature - Minimum
-45 Degrees F
Compatible Wheel Manufacturer Model Number
P-PRP-035X013/038D

Description

Stem Caster, Swivel Caster, 250 lb Load Rating, 0 to 299 lb, 3 1/2 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 4 9/16 in Mounting Height, Delrin, 1/2 In.-13 x 1-1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
