  11. Swivel Stem Caster, TPR, 4 in., 275 lb.

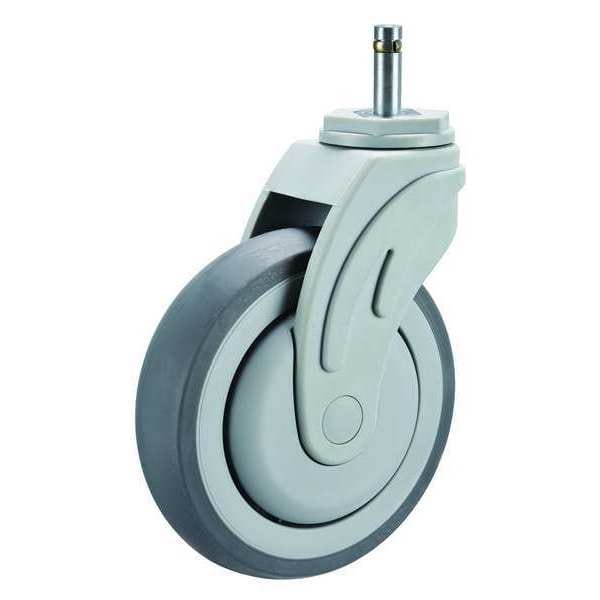

Zoro Select Swivel Stem Caster, TPR, 4 in., 275 lb. P17S-RP040K-SG1-001 - main

Swivel Stem Caster, TPR, 4 in., 275 lb.

  • Mfr # P17S-RP040K-SG1-001

  • Zoro # G5756965

product price: $17.19
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
5 23/32 in
Load Rating
190 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP040K-SG1-001
Zoro #
G5756965
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
5 23/32 in
Stem Length
1-7/16 in
Stem Dia.
7/16 in
Wheel Dia.
4 in
Overall Height
5-13/16 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
3-5/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
190 lb
Wheel/Tread Material
Polyolefin
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Core Material
Polypropylene
Includes
Thread Guards
Wheel Color
Gray
Features
Glass Filled Nylon Body
Caster Temp. Range
-4 Degrees To 140 Degrees F
Replacement Wheel
Mfr. No. NG-04QDP-125-05
Caster Brake Included
No
Caster Swivel Lock Type
No Lock Included
Caster Raceway
Precision Ball
Core Color
Gray
Caster Load Rating Range
Light Duty
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Caster Wheel Bearings
Precision Ball
Frame Finish
Natural Light Gray
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Wheel Shape
Standard
Caster Product Group
Swivel Caster
Swivel Raceway Type
Sealed Single Ball Bearing
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Operating Temperature Range
-45 Degrees to 180 Degrees F
Wheel/Tread Color
Gray
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Extended Lead
No
Series
P17 Series
Includes Thread Guards
Yes
Caster Mounting Type
Grip Ring Stem
Tread Color
Gray
System of Measurement
Inch
Load Capacity
190 lb
Tread
Standard
Wheel/Tread Hardness
85-95 Shore A
Caster Break Type
No Brake Included
Load Capacity - Maximum
190 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Compatible Wheel Manufacturer Model Number
NG-04QDP-125-05
Frame Color
Gray
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
80 Shore A
For Surface Type
Tile, Vinyl, Wood

Description

Stem Caster, Swivel Caster, 190 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 5 23/32 in Mounting Height, Ball, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
