  11. Swivel Stem Caster w/Brake, 3 in., 250 lb.

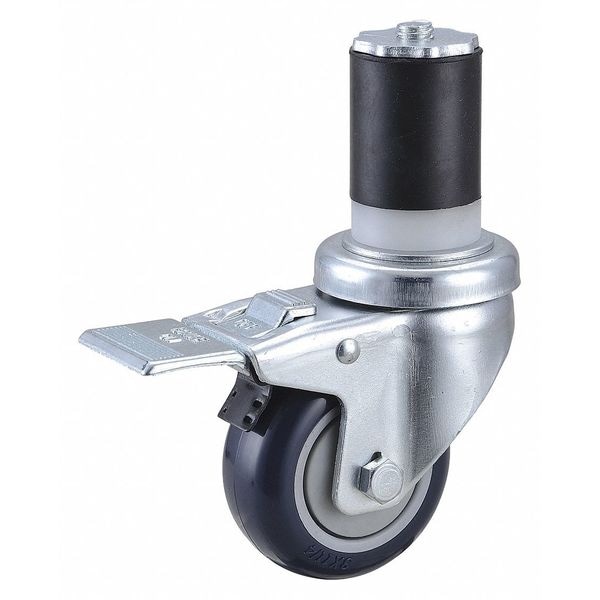

Zoro Select Swivel Stem Caster w/Brake, 3 in., 250 lb. 49H627 - main

Swivel Stem Caster w/Brake, 3 in., 250 lb.

  • Mfr # 49H627

  • Zoro # G6453483

product price: $30.79
/ea

Key Features

Caster Stem Type
Expanding Adapter
Tread Shape
Standard
Wheel Width
1 1/4 in
Mounting Height
4 1/4 in
Load Rating
250 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
49H627
Zoro #
G6453483
UPC #
190735902875
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Height
4 1/4 in
Stem Length
2 37/64 in
Overall Height
4 1/4 in
Caster Thread Size
1/2-13
Wheel Dia.
3 in
Stem Dia.
1 37/64 in
Caster Stem Size
1-37/64 in x 2-37/64 in

Details

Item
Stem Caster
Caster Stem Type
Expanding Adapter
Tread Shape
Standard
Load Rating
250 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Polyurethane
Application
Food Service Equipment, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Non-Marking
Yes
Caster Brake Type
Face Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Temp. Range
-40 Degrees to 175 Degrees F
Caster Core Material
Polypropylene
Caster Wheel/Tread Material
Polyurethane
Caster Raceway
Double Ball
Wheel Color
Blue
Core Color
Gray
Frame Finish
Zinc Plated
Caster Wheel Bearings
Ball
Caster Load Rating Range
Light-Duty
Caster Swivel Lock Type
Total Lock
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Caster Product Group
Swivel Caster with Brake
Standards
ANSI ICWM
Caster Brake Included
Yes
Operating Temperature Range
-40 Degrees to 175 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Plastic
Swivel Lock Type
Total Lock
Wheel/Tread Color
Blue
Operating Temperature - Minimum
-40 Degrees F
Load Capacity - Maximum
250 lb
Operating Temperature - Maximum
175 Degrees F

Description

Stem Caster, Swivel Caster with Brake, 250 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 4 1/4 in Mounting Height, Ball, 1-37/64 in x 2-37/64 in Caster Stem Size, Expanding Adapter, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
