  11. Swivel Stem Shock-Absorbing Castr, 550 lb
Zoro Select Swivel Stem Shock-Absorbing Castr, 550 lb GDS-150B-SS - main

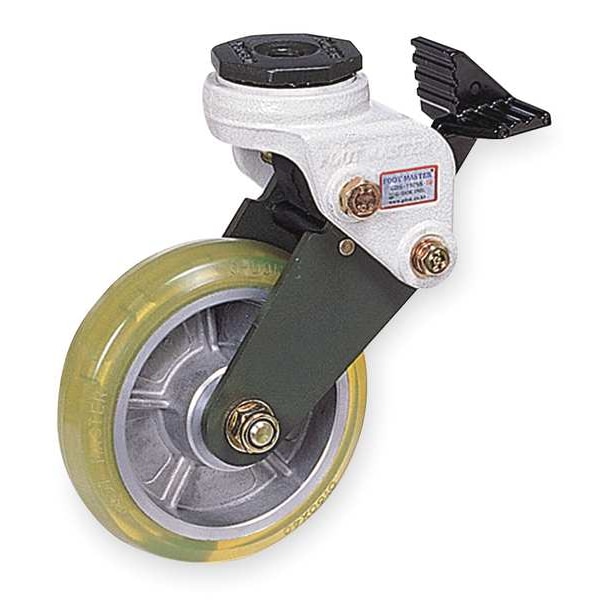

Swivel Stem Shock-Absorbing Castr, 550 lb

  • Mfr # GDS-150B-SS

  • Zoro # G0363291

product price: $172.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
Threaded Bolt Hole
Wheel Width
1 5/8 in
Mounting Height
9 1/16 in
Load Rating
330 lb
Load Rating Range
300 to 999 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GDS-150B-SS
Zoro #
G0363291
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
1 5/8 in
Mounting Height
9 1/16 in
Stem Length
1-1/4"
Thread Size
M16
Mounting Bolt Dia.
M16
Caster Thread Size
M16
Overall Height
9 1/16 in
Wheel Dia.
6 in
Bolt Hole Dia.
16 mm
Stem Dia.
5/8"
Tire Thickness
40 mm

Details

Item
Bolt-Hole Caster
Caster Stem Type
Threaded Bolt Hole
Load Rating
330 lb
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Polyurethane
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Aluminum
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Firm
Number of Wheels
1
Caster Load Rating Range
Light-Duty
Caster Core Material
Aluminum
Core Color
Gray
Frame Finish
Powder Coated
Includes
Mounting Stem Nut
Caster Wheel Bearings
Ball
Frame Material
Die Cast Aluminum
Wheel Color
Clear
Caster Brake Included
Yes
Standards
ANSI, CE
Caster Temp. Range
14 Degrees to 194 Degrees F
Caster Raceway
Double Ball
Caster Temp. Range Available
Yes
System of Measurement
Metric
Caster Wheel/Tread Material
Polyurethane
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster with Brake
Features
Shock Absorbing Caster
Swivel Raceway Type
Double Ball
Operating Temperature Range
14 Degrees to 194 Degrees F
Wheel Core Material
Aluminum
Wheel/Tread Hardness
90 Shore A
Wheel/Tread Color
Gray
Operating Temperature - Minimum
194 Degrees F
Load Capacity - Maximum
330 lb
Operating Temperature - Maximum
14 Degrees F
Caster Features
Shock-Absorbing
Wheel Hardness Rating
90 Shore A

Description

Bolt-Hole Caster, 16 mm Bolt Hole Dia., M16 Mounting Bolt Dia., Aluminum Caster Frame Material, Powder Coated Frame Finish, 300 to 999 lb Load Rating Range, 330 lb Load Rating, 1 Number of Wheels, Ball, 9 in Mounting Height, 6 in Wheel Dia., 1 5/8 in Wheel Width, Polyurethane Wheel/Tread Material, 90 Shore A Wheel/Tread Hardness, Firm, Yes Non-Marking
