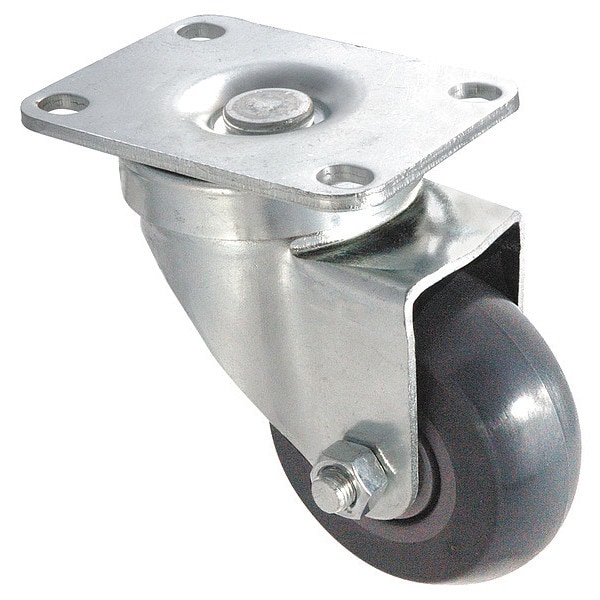

Zoro Select Swivl Plate Castr, Polyurthan, 4 in, 350 lb 1UHZ7 - main

Swivl Plate Castr, Polyurthan, 4 in, 350 lb

  • Mfr # 1UHZ7

  • Zoro # G2955574

product price:  $9.99
/ea

Key Features

Standards
ANSI, ANSI ICWM
Includes
Thread guards
Application
General Purpose
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1UHZ7
Zoro #
G2955574
UPC #
190735413678
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Wheel Width
1 1/4 in
Overall Height
5-3/16in
Swivel Radius
3 3/8 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Height
5 3/16 in
Mounting Plate Thickness
5/32in

Details

Standards
ANSI, ANSI ICWM
Includes
Thread guards
Application
General Purpose
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Sub-Type
Swivel
Item
Plate Caster
Caster Temp. Range Available
No
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Number of Wheels
1
Caster Frame Material
Steel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
Yes
Thread Guards
No
Caster Plate Hole Pattern
C
Wheel Color
Gray
Load Rating
350 lb
Core Color
Gray
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel Bearing Type
Ball
Wheel Core Material
Polyolefin
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
