  6. Swvl Sold Rubr Whl Cstr, 9-7/8 in, 1000 lb
Zoro Select Swvl Sold Rubr Whl Cstr, 9-7/8 in, 1000 lb L-VLE 250K - main

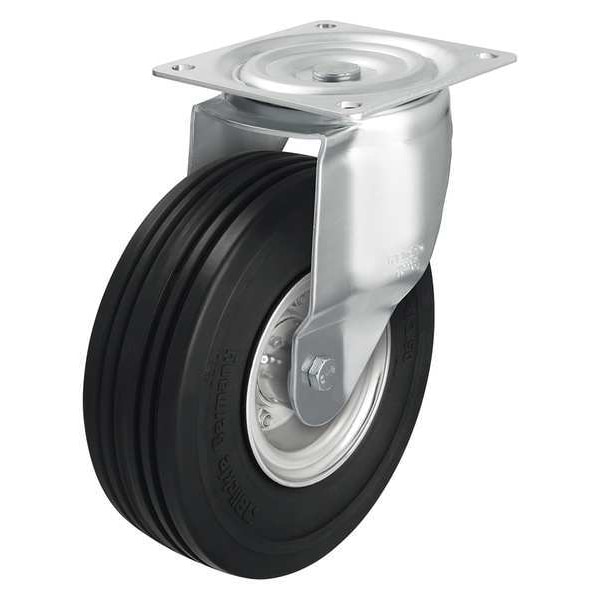

Swvl Sold Rubr Whl Cstr, 9-7/8 in, 1000 lb

  • Mfr # L-VLE 250K

  • Zoro # G4601283

product price:  $365.99
/ea
Free Shipping & Returns

Key Features

Hub Color
Gray
Outside Bolt Hole Spacing
140 mm x 140 mm
Wheel Dia.
10 in
Mounting Bolt Dia.
9/16 in
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-VLE 250K
Zoro #
G4601283
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
10 in
Mounting Bolt Dia.
9/16 in
Overall Height
11-5/8in
Wheel Width
3 3/8 in
Stem Dia.
No Stem
Mounting Plate Size
175 mm x 175 mm
Mounting Height
11 5/8 in
Swivel Radius
195 mm
Bolt Hole Spacing - Width
5.5 in
Mounting Plate Thickness
4 mm
Bolt Hole Spacing - Length
5.5 in
Mounting Plate Length
6 7/8 in
For Axle Dia.
12 mm
Overall Wheel Width
3 3/8 in

Details

Hub Color
Gray
Outside Bolt Hole Spacing
140 mm x 140 mm
Caster Brake Included
No
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Load Rating
990 lb
Caster Temp. Range Available
No
Number of Wheels
1
Inside Bolt Hole Spacing
140 mm x 140 mm
Tread
Ribbed
Item
Swivel Caster
Caster Plate Hole Pattern
D
Caster Stem Type
No Stem/Plate Included
Core Color
Silver
Caster Mounting Type
Plate
Replacement Wheel
VLE 250/20-75K
Caster Brake Type
No Brake
Non-Marking
No
Tread Color
Black
System of Measurement
Metric
Application
Retail, Industrial, Commercial
Standards
DIN EN 12532, ISO 9001
Includes
Top Grease Seal
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Caster Frame Material
Steel
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Steel/Elastic Solid Rubber
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel Type
Flat-Free
Extended Lead
No
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Shape
Standard
Series
L Series
Wheel Core Material
Pressed Steel
Load Capacity
450 kg
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
990 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Mounting Plate Shape
Square
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 990 lb, Wheel Dia. 10 in, Wheel Width 3 3/8 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
