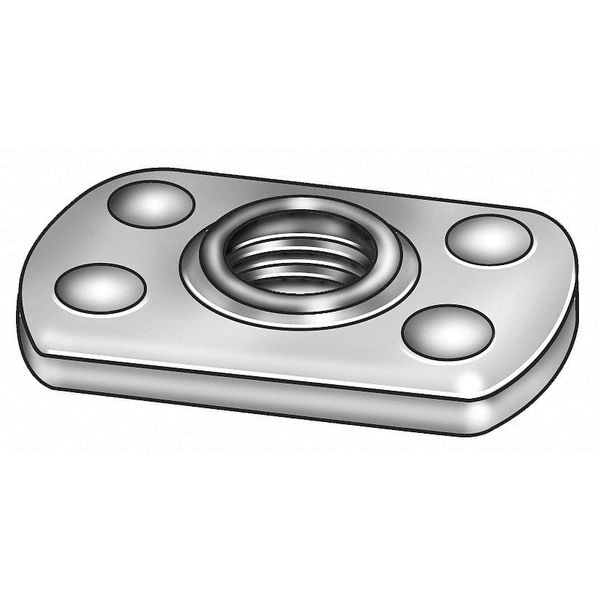

Tab Weld Nut, 3/8"-16, Steel, 5/8 in Wd, 63/64 in Lg, 3/32 in Ht, 50 PK
- Mfr # 1LAK2
- Zoro # G2340414
CAD Available
product price:Â
$
10.59
/pk of 50, $0.21/ea
Key Features
CAD Drawing
Base Shape
Tab
Material
Steel
Finish
Black Oxide
Base Width
5/8 in
Base Length
63/64 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1LAK2
- Zoro #
- G2340414
- UPC #
- -
- Country of Origin
- Multiple
- CAD Available
- Yes
- Item
- Weld Nut
- Base Shape
- Tab
- Material
- Steel
- Finish
- Black Oxide
- Hole Location
- Center
- Number of Weld Projections
- 4
- System of Measurement
- Inch
- Thread Direction
- Right Hand
- Nut Style
- Tab Base Weld Nut with Projections
- Pack Size
- Small Pack
- Thread Type
- Coarse
- Fastener Thread Direction
- Right Hand
- Fastener Thread Type
- UNC (Coarse)
- Basic Material
- Steel
- Fastener Finish
- Plain
- Weld Projections
- 4
- Shell Material
- Steel
Dimensions
- Thread Size
- 3/8"-16
- Base Width
- 5/8 in
- Base Length
- 63/64 in
- Base Height
- 3/32 in
- Collar Height
- 0.03125 in
- Collar Diameter
- 0.15 in
- Pilot Height
- 0.094 in
- Base Thickness
- 1/8 in
- Pilot Hole Size
- 29/64 in
- Pilot Dia.
- 7/16 in
- For Hole Diameter
- 29/64 in
- Projection Width
- 0.15 in
- Dia./Thread Size
- 3/8"-16
- Projection Height
- 0.03 in
- Barrel Height
- 5/8 in
Description
Weld Nut, Material Steel, Finish Black Oxide, Thread Size 3/8 In.-16, Base Height 3/32 in, Base Width 5/8 in, Base Length 63/64 in, Collar Height 0.031 in, Collar Diameter 0.15 in, Number of Weld Projections 4, System of Measurement Inch, Base Shape Tab, Barrel Diameter Not Applicable, Barrel Height 5/8 in, Base Diameter Not Applicable, For Hole Diameter 29/64 in, Hole Location Center, Pack Size Small Pack, Package Quantity 50
