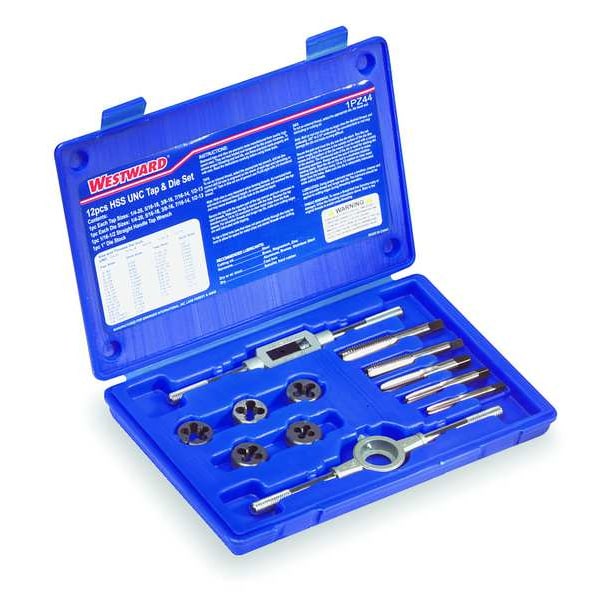

Zoro Select Tap and Die Set, Plug, 12 1PZ44 - main

Tap and Die Set, Plug, 12

  • Mfr # 1PZ44

  • Zoro # G0601483

product price: $82.39
/ea
Free Shipping & Returns

Key Features

Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Pieces
12
Includes
Straight Handle Tap Wrench, Die Stock, Plastic Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1PZ44
Zoro #
G0601483
UPC #
190735756546
Country of Origin
China

Dimensions

Cutting Sizes
5
Tap Dimension Type
Inch
Size Range
1/4" to 1/2"
Sizes Included
1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13
Size/Range
1/4 to 1/2"
Tap Sizes Included
1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
Max. Die Thread Size
1/2"-13
Max. Tap Thread Size
1/2"-13
Min. Tap Thread Size
1/4"-20
Thread Sizes Included
1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
Die Thread Sizes Included
1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
Tap Overall Length
2.5 in, 2.71875 in, 2.9375 in, 3.15625 in, 3.375 in
Dimensions Standard
ASME B94.9
75% Thread Drill Size
27/64 in, 5/16 in, #8, F, U
Drill Bit Size
27/64", 5/16", #8, F, U

Details

Item
Tap and Die Set
Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Pieces
12
Includes
Straight Handle Tap Wrench, Die Stock, Plastic Case
Tap Chamfer
Plug
Die Shape
Round Fixed
Die Type
Solid
Thread Type
UNC
Standards
ANSI-B94-1987
SAE or Metric
SAE
Die Material
High Speed Steel
Material
High Speed Steel
Features
Fully-Ground Tooling in a Custom-Fit
Material - Machining
High Speed Steel
Thread Standard
UNC
Measurement System
Fractional Inch
Die Finish
Bright (Uncoated)
Number Of Taps
5
Finish - Machining
Bright (Uncoated)
Tap Material Grade
M2
Tap Series
440
Case Type
Plastic Case
Spiral Direction
Right Hand
Thread Limit
H4, H5
Primary Material Application ISO Code
10.1, 4.1, 6.1, 7.1, 8.1, 9.1
Secondary Material Application ISO Code
1.1, 1.2, 2.1, 21, 22, 23, 24, 25, 26, 31, 32, 33, 34, 35, 36
Class of Fit
2B
Coolant Fed
No
Die Material Grade
M2
Threads per Inch
13, 14, 16, 18, 20
Tap Type
Hand
Tap Shank Standard
ANSI
Primary Material Application
Alloy Steel, Austenitic Stainless Steel, Magnetic Soft Steel, Plain Carbon Steel
Die Series
314
Secondary Material Application
Alloyed Aluminum, Alloyed Nickel, Alloyed Titanium
Type
Fractional

Description

Tap and Die Set, Number of Pieces 12, Die Shape Round, Tap Type Hand, Die Material High Speed Steel, Thread Sizes Included 1/2 In.-13, 1/4 In.-20, 3/8 In.-16, 5/16 In.-18, 7/16 In.-14, Die Thread Sizes Included 1/2 In.-13, 1/4 In.-20, 3/8 In.-16, 5/16 In.-18, 7/16 In.-14, Number Of Taps 5, Thread Standard UNC, Tap Shank Standard ANSI

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
