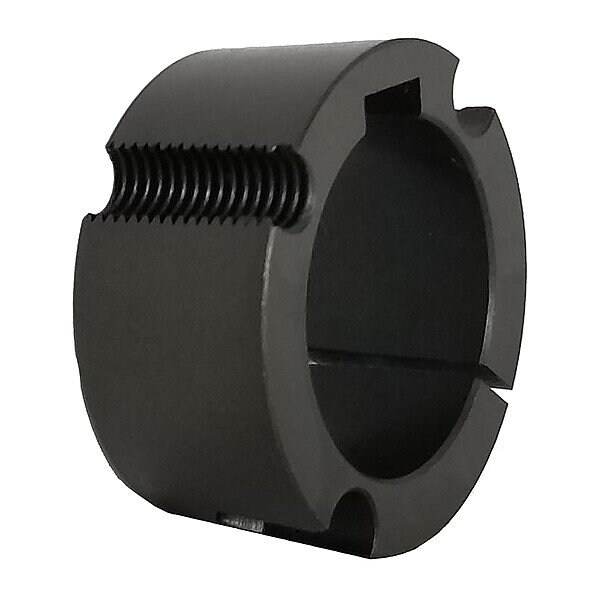

Taper Lock Bushing, Flangeless
Mfr # 1610x42mm
Zoro # G314642481
product price:Â $17.59
/eaKey Features
Bore Bushing Series
1610
Length
1 in
Includes
(2) Set Screws
Material
Steel
Taper
8 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
1610x42mm
Zoro #
G314642481
UPC #
00195057291409
Country of Origin
China
Dimensions
Length
1 in
Bolt Circle Diameter
2.13 in
Overall Diameter
2.25 in
Bore Diameter
42 mm
Keyway Width
12 mm
Keyway Height
3.5 mm
Details
Bore Bushing Series
1610
Item
Taper Lock Bushing
Includes
(2) Set Screws
Material
Steel
Taper
8 Degrees
Flange Type
Flangeless
For Shaft Type
Keyed
Bushing Type
Taper Lock
Maximum Torque
4,300 in-lb
System of Measurement
Metric
Description
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 1610, Bore Diameter 42 mm, Length 1 in, Bolt Circle Diameter 2.13 in, Bolt Size Not Applicable, System of Measurement Metric, Bushing Diameter Not Applicable, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3.5 mm, Keyway Width 12 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.25 in, Taper 8 Degrees
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
