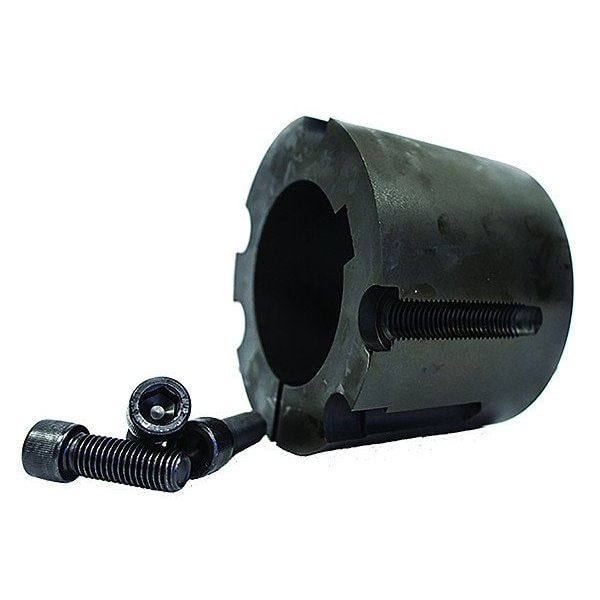

Taper Lock Bushing, Flangeless

  • Mfr # 1615x24mm

  • Zoro # G714642470

product price:  $23.69
/ea

Key Features

Bore Bushing Series
1615
Length
1.5 in
Flange Type
Flangeless
Material
Steel
Includes
(2) Set Screws
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1615x24mm
Zoro #
G714642470
UPC #
00195057291614
Country of Origin
China

Dimensions

Length
1.5 in
Bore Diameter
24 mm
Bolt Circle Diameter
2.13 in
Overall Diameter
2.25 in
Keyway Height
3.5 mm
Keyway Width
8 mm

Details

Bore Bushing Series
1615
Flange Type
Flangeless
Material
Steel
Includes
(2) Set Screws
Taper
8 Degrees
Item
Taper Lock Bushing
System of Measurement
Metric
Bushing Type
Taper Lock
Maximum Torque
4,300 in-lb
For Shaft Type
Keyed

Description

Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 1615, Bore Diameter 24 mm, Length 1.5 in, Bolt Circle Diameter 2.13 in, Bolt Size Not Applicable, System of Measurement Metric, Bushing Diameter Not Applicable, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3.5 mm, Keyway Width 8 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.25 in, Taper 8 Degrees
