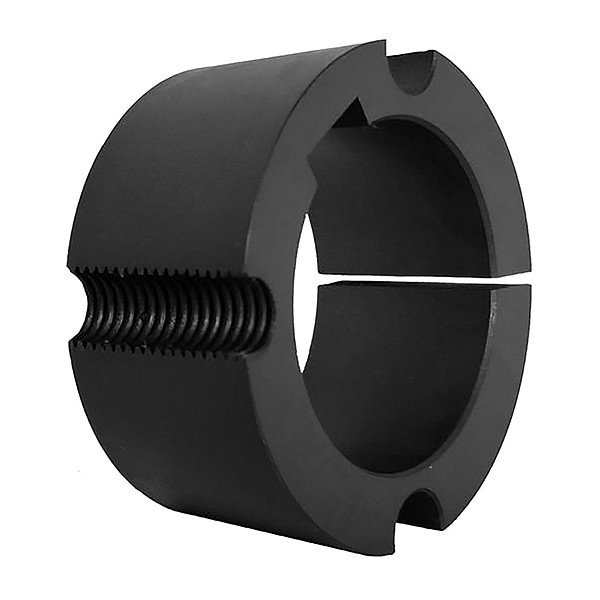

Taper Lock Bushing, Flangeless
Mfr # 2012x48mm
Zoro # G514642472
product price:Â
$
24.19
/ea
Key Features
Bore Bushing Series
2012
Length
1.25 in
Material
Steel
Taper
8 Degrees
Flange Type
Flangeless
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2012x48mm
- Zoro #
- G514642472
- UPC #
- 00195057292369
- Country of Origin
- China
Dimensions
- Length
- 1.25 in
- Overall Diameter
- 2.75 in
- Bolt Circle Diameter
- 2.63 in
- Bore Diameter
- 48 mm
- Keyway Height
- 4 mm
- Keyway Width
- 14 mm
Details
- Bore Bushing Series
- 2012
- Material
- Steel
- Taper
- 8 Degrees
- Flange Type
- Flangeless
- Includes
- (2) Set Screws
- Item
- Taper Lock Bushing
- Bushing Type
- Taper Lock
- System of Measurement
- Metric
- Maximum Torque
- 7,150 in-lb
- For Shaft Type
- Keyed
Description
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 2012, Bore Diameter 48 mm, Length 1.25 in, Bolt Circle Diameter 2.63 in, Bolt Size Not Applicable, System of Measurement Metric, Bushing Diameter Not Applicable, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 4 mm, Keyway Width 14 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.75 in, Taper 8 Degrees
