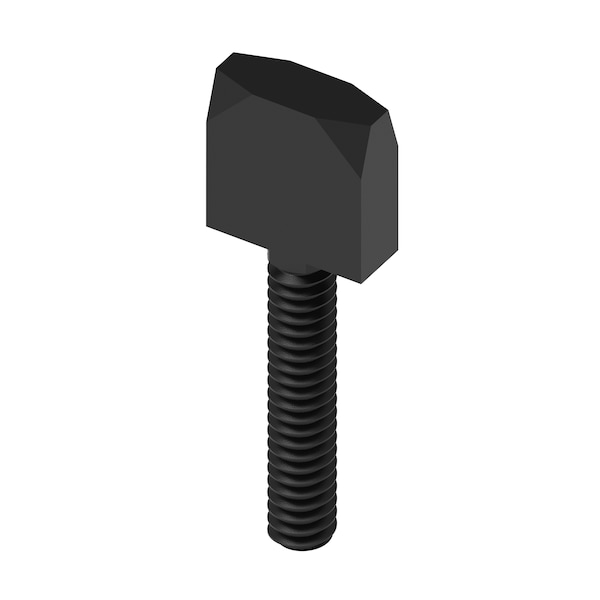

Thumb Screw, No. 10-24 Thread Size, Wing/Spade, Black Oxide Steel, 1/2 in Head Ht, 1 in Lg
Mfr # Z1085
Zoro # G1556283
CAD Available
product price:Â $6.99
/ea
Sold in multiples of 2 for $13.98
Key Features
CAD Drawing
Thread Size
#10-24
Fastener Length
1 in
Head Shape
Spade
Material
Steel
Finish
Black Oxide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
Z1085
Zoro #
G1556283
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
#10-24
Fastener Length
1 in
Head Height
1/2 in
Head Thickness
0.188 in
Head Dia.
1/2 in
Head Width
0.5 in
Screw Size
#10
Maximum Head Height
1/2 in
Overall Length
1 1/2 in
Thread Length
15/16 in
Maximum Head Width
1/2 in
Description
Thumb Screw, Type Quarterturn Thumb Screw, Finish Black Oxide, Material Steel, Thread Size #10-24, Fastener Length 1 in, Thread Style Partially Threaded, Thread Length 15/16 in, Head Width 0.5 in, Head Height 0.5 in, Tensile Strength 57,000 psi, Head Type Spade, Maximum Head Width 1/2 in, Minimum Head Width Not Applicable, Maximum Head Height 1/2 in, Minimum Head Height Not Applicable, System of Measurement Inch, Drive No Drive, For Use in Systems Jig and Fixture Component, Head Material Steel
