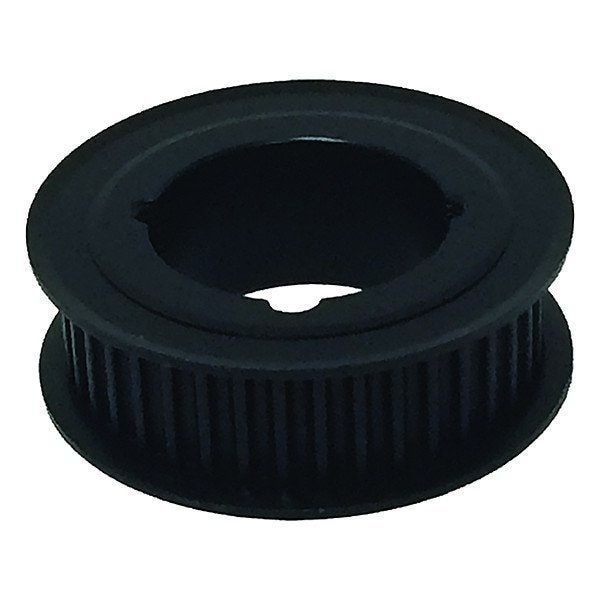

Timing Belt Pulley, Steel, W 7/8 in
Mfr # 36-5P15-1108
Zoro # G010986476
product price:Â $64.89
/eaKey Features
Pitch Diameter
2.256 in
Pitch
5 mm
Maximum Bore Diameter
1 1/8 in
Number of Flanges
2
For Belt Width
15 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 36-5P15-1108
- Zoro #
- G010986476
- UPC #
- 00195057812949
- Country of Origin
- United States
Dimensions
- Pitch Diameter
- 2.256 in
- Maximum Bore Diameter
- 1 1/8 in
- For Belt Width
- 15 mm
- Minimum Bore Diameter
- 1/2 in
- For Belt Trade Size
- GT
- For Bushing Size
- 1108
- Overall Width
- 7/8 in
- Face Width
- 0.88 in
- Outside Diameter
- 2.375 in
Details
- Pitch
- 5 mm
- Number of Flanges
- 2
- Resistance Properties
- Chemical-Resistant, Oil-Resistant, Wear-Resistant
- Standards
- REACH, RoHS
- Finish
- Black Oxide
- For Use With
- Timing Belt
- Weight
- 0.51 lb
- Number of Teeth
- 36
- Features
- Highly Flexible, Low Speed Compatible
- For Belt Series
- PowerGrip(R) GT(R)
- For Bushing Type
- Taper Lock
- Material
- Steel
- Item
- Timing Belt Pulley
- Bore Type
- Bushed
- Tooth Shape
- Modified Curvilinear
Description
Timing Belt Pulley, For Belt Series PowerGrip(R) GT(R), For Belt Width 15 mm, For Bushing Size 1108, For Bushing Type Taper Lock, For Use With Timing Belt, Material Steel, Maximum Bore Diameter 1 1/8 in, Minimum Bore Diameter 1/2 in, Number of Teeth 36, Outside Diameter 2.375 in, Pitch 5 mm, Pitch Diameter 2.256 in, Face Width 0.88 in, Features Highly Flexible, Low Speed Compatible, Finish Black Oxide, For Belt Trade Size GT, Number of Flanges 2, Overall Width 7/8 in
