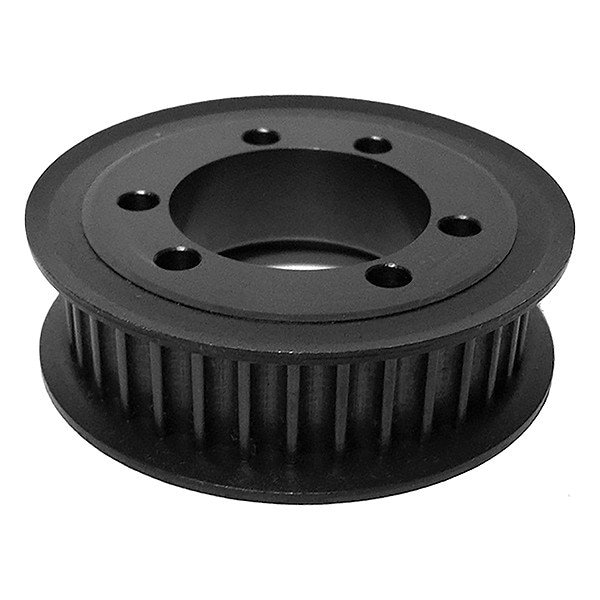

TimingBeltPulley, CastIron, W11/8in
Mfr # QD38-8M-20
Zoro # G410984812
product price: $98.89
/ea
Free Shipping & Returns
Key Features
Maximum Bore Diameter
1 5/8 in
Outside Diameter
4.134 in
For Belt Trade Size
HTD
Number of Teeth
38
For Belt Series
HTD
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QD38-8M-20
Zoro #
G410984812
UPC #
00195057723368
Country of Origin
United States
Dimensions
Maximum Bore Diameter
1 5/8 in
Outside Diameter
4.134 in
For Belt Trade Size
HTD
Pitch Diameter
3.81 in
Overall Width
1 1/8 in
Minimum Bore Diameter
1/2 in
For Bushing Size
SH
Face Width
1.125 in
For Belt Width
20 mm
Details
Number of Teeth
38
For Belt Series
HTD
Number of Flanges
2
Resistance Properties
Chemical Resistant, Cut Resistant, Oil Resistant, Wear Resistant
Pitch
8 mm
Tooth Shape
Curvilinear
Material Fabrication
Cast
Standards
REACH, RoHS
Material
Cast Iron
Features
Built for High-Torque, Low-Speed Applications, Outperforms Industry Standards, Superb Flexibility
Finish
Black Oxide
For Bushing Type
Quick Detachable
Weight
2.13 lb
For Use With
HTD Belts
Item
HTD Timing Belt Pulley
Description
Timing Belt Pulley, For Belt Series PowerGrip(R) HTD(R), For Belt Width 20 mm, For Bushing Size SH, For Bushing Type Quick Detachable, For Use With Timing Belt, Material Cast Iron, Maximum Bore Diameter 1 5/8 in, Minimum Bore Diameter 1/2 in, Number of Teeth 38, Outside Diameter 4.134 in, Pitch 8 mm, Pitch Diameter 3.81 in, Face Width 1.125 in, Features Highly Flexible, Low Speed Compatible, Finish Black Oxide, For Belt Trade Size HTD, Material Fabrication Cast, Number of Flanges 2
