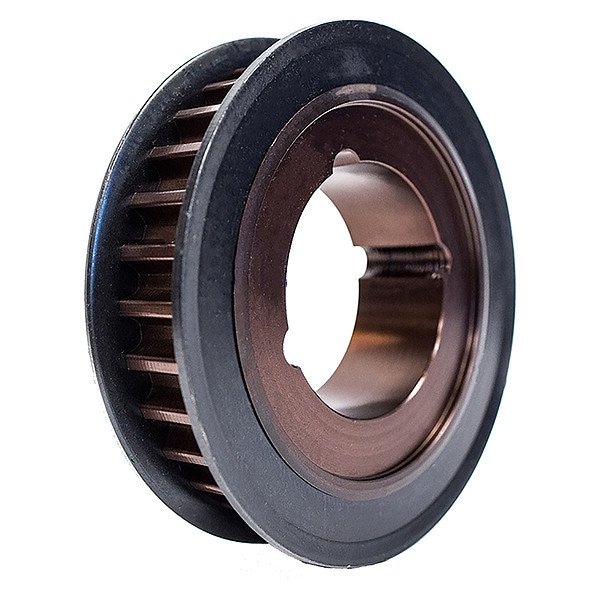

TimingBeltPulley, CastIron, W13/4in
Mfr # 40-14MX20-2517
Zoro # G710986073
product price: $249.99
/ea
Free Shipping & Returns
Key Features
Features
Built for High-Torque, Low-Speed Applications, Outperforms Industry Standards, Superb Flexibility
For Use With
Poly Chain GT Carbon Belts
Maximum Bore Diameter
2 1/2 in
For Bushing Type
Taper Lock
Overall Width
1 3/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
40-14MX20-2517
Zoro #
G710986073
UPC #
00195057820142
Country of Origin
United States
Dimensions
Maximum Bore Diameter
2 1/2 in
Overall Width
1 3/4 in
Pitch Diameter
7.018 in
For Belt Width
20 mm
Face Width
1.359 in
Outside Diameter
7.518 in
For Belt Trade Size
Carbon
Minimum Bore Diameter
1/2 in
For Bushing Size
2517
Details
Features
Built for High-Torque, Low-Speed Applications, Outperforms Industry Standards, Superb Flexibility
For Use With
Poly Chain GT Carbon Belts
For Bushing Type
Taper Lock
Material Fabrication
Cast
Finish
Black Oxide
Number of Teeth
40
Standards
REACH, RoHS
Weight
10.42 lb
Resistance Properties
Chemical Resistant, Cut Resistant, Oil Resistant, Wear Resistant
Item
PCGT Timing Belt Pulley
Pitch
14 mm
For Belt Series
Poly Chain GT Carbon
Material
Cast Iron
Number of Flanges
2
Description
Timing Belt Pulley, For Belt Series Polychain(R) GT(R) Carbon(TM), For Belt Width 20 mm, For Bushing Size 2517, For Bushing Type Taper Lock, For Use With Timing Belt, Material Cast Iron, Maximum Bore Diameter 2 1/2 in, Minimum Bore Diameter 1/2 in, Number of Teeth 40, Outside Diameter 7.518 in, Pitch 14 mm, Pitch Diameter 7.018 in, Face Width 1.359 in, Features Highly Flexible, Low Speed Compatible, Finish Black Oxide, For Belt Trade Size GT, Material Fabrication Cast, Number of Flanges 2
