TimingBeltPulley, CastIron, W21/8in
Mfr # 22HP100
Zoro # G310986442
product price:Â
$
84.69
/ea
Key Features
For Use With
Timing Belt
Pitch Diameter
3.501 in
Standards
REACH, RoHS
Overall Width
2 1/8 in
Pitch
0.5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 22HP100
- Zoro #
- G310986442
- UPC #
- 00195057628540
- Country of Origin
- United States
Dimensions
- Pitch Diameter
- 3.501 in
- Overall Width
- 2 1/8 in
- Minimum Bore Diameter
- 1/2 in
- Maximum Bore Diameter
- 1 7/16 in
- For Belt Trade Size
- H
- For Belt Width
- 1 in
- Face Width
- 1.25 in
- Outside Diameter
- 3.813 in
- For Bushing Size
- P1
Description

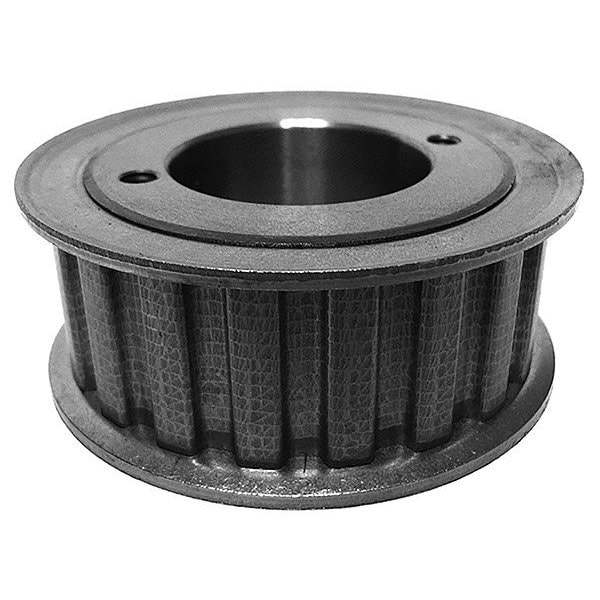

Timing Belt Pulley, For Belt Series H, For Belt Width 1 in, For Bushing Size P1, For Bushing Type Split Taper, For Use With Timing Belt, Material Cast Iron, Maximum Bore Diameter 1 7/16 in, Minimum Bore Diameter 1/2 in, Number of Teeth 22, Outside Diameter 3.813 in, Pitch 0.5 in, Pitch Diameter 3.501 in, Face Width 1.25 in, Features Highly Flexible, Low Speed Compatible, Finish Black Oxide, For Belt Trade Size H, Material Fabrication Cast, Number of Flanges 2, Overall Width 2 1/8 in
