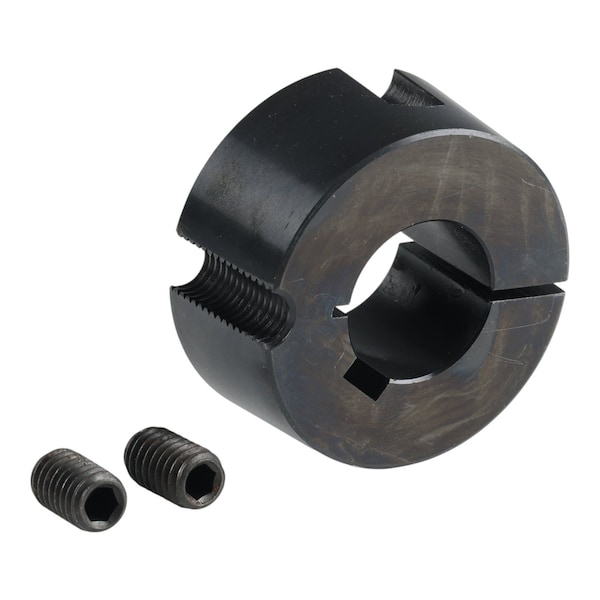

TL Bushing, 1610, 25 mm B Dia, 1 in L
Mfr # 1610X25MM
Zoro # G810984269
product price:Â
$
17.59
/ea
Key Features
Bore Bushing Series
1610
Length
1 in
Overall Diameter
2.25 in
Material
Steel
Bore Diameter
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1610X25MM
- Zoro #
- G810984269
- UPC #
- 00195057006355
- Country of Origin
- China
Dimensions
- Length
- 1 in
- Overall Diameter
- 2.25 in
- Bore Diameter
- 25 mm
- Bolt Circle Diameter
- 2.13 in
- Keyway Height
- 3.5 mm
- Keyway Width
- 8 mm
Details
- Bore Bushing Series
- 1610
- Material
- Steel
- Flange Type
- Flangeless
- Item
- Taper Lock Bushing
- Taper
- 8 Degrees
- Bushing Type
- Taper Lock
- System of Measurement
- Metric
- Includes
- (2) Set Screws
- Maximum Torque
- 4,300 in-lb
- For Shaft Type
- Keyed
Description
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 1610, Bore Diameter 25 mm, Length 1 in, Bolt Circle Diameter 2.13 in, Bolt Size Not Applicable, System of Measurement Metric, Bushing Diameter Not Applicable, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3.5 mm, Keyway Width 8 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.25 in, Taper 8 Degrees
