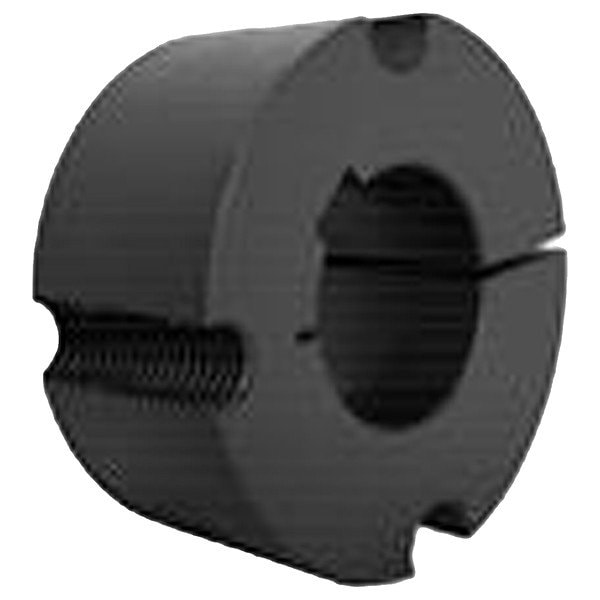

TL Bushing, 2012, 32 mm B Dia, 1.25 in L
Mfr # 2012X32MM
Zoro # G210985170
product price:Â $24.19
/eaKey Features
Bore Bushing Series
2012
Length
1.25 in
Keyway Width
10 mm
Taper
8 Degrees
Bolt Circle Diameter
2.63 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2012X32MM
- Zoro #
- G210985170
- UPC #
- 00195057292260
- Country of Origin
- China
Dimensions
- Length
- 1.25 in
- Keyway Width
- 10 mm
- Bolt Circle Diameter
- 2.63 in
- Overall Diameter
- 2.75 in
- Bore Diameter
- 32 mm
- Keyway Height
- 3.5 mm
Details
- Bore Bushing Series
- 2012
- Taper
- 8 Degrees
- Material
- Steel
- Fastener Tightening Torque Capacity
- 7,150 in-lb
- Includes
- (2) Set Screws
- Flange Type
- Flangeless
- Bushing Type
- Taper Lock
- Item
- Taper Lock Bushing
- System of Measurement
- Metric
- Maximum Torque
- 7,150 in-lb
- For Shaft Type
- Keyed
Description
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 2012, Bore Diameter 32 mm, Length 1.25 in, Bolt Circle Diameter 2.63 in, Bolt Size Not Applicable, System of Measurement Metric, Bushing Diameter Not Applicable, Fastener Tightening Torque Capacity 7,150 in-lb, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3.5 mm, Keyway Width 10 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.75 in
