  11. Toggle Clamp, Hold Down, 150 Lbs, SS
Shop All Toggle & Latch Clamps
Zoro Select

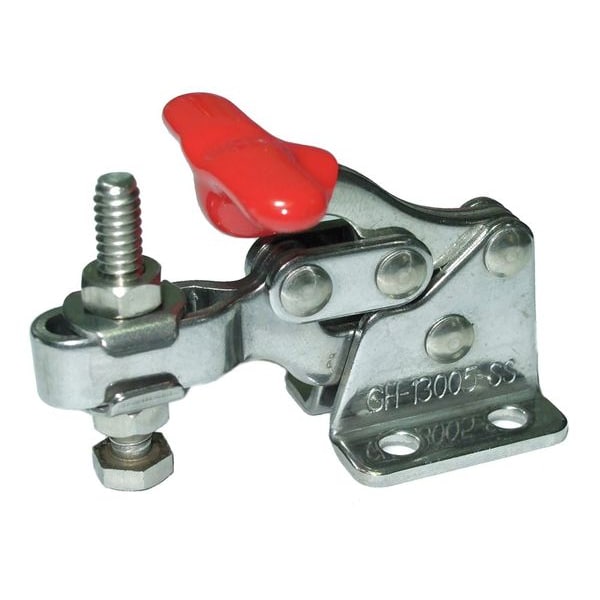

Toggle Clamp, Hold Down, 150 Lbs, SS

original price: $20.99
5% off
new price: $19.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Horizontal Handle Hold Down, SS
  • Holding Capacity (Lb.) 200
  • Overall Height (In.) 1.4 in
  • Body Material Stainless Steel
  • Overall Length (In.) 2.24 in
See all product information

Product Information

Dimensions

Overall Height (In.) 1.4 in
Overall Length (In.) 2.24 in
Height Under Arm (In.) 0.5 in
Dia. (In.) 0.17 in
Thread Size 10-24
Overall Depth 1.42 in
Overall Width 1 in
Overall Length 2.24 in
Spindle Thread Size #10
Arm Length 1.21 in
Tip Diameter 0.31 in
Fastener Thread Size #10
Height Under Arm 0.5 in

Details

Item Toggle Clamp
Type Horizontal Handle Hold Down, SS
Holding Capacity (Lb.) 200
Body Material Stainless Steel
Spindle Material Stainless Steel
Includes Spindle, (2) Flanged Washers, (2) Nuts
Handle 90 Degrees
Arm U-Shaped
Spindle Hex Head Fully Threaded Stainless Steel
Base Mounting Centers (In.) 0.53 x 0.63
Application Metalworking, Welding
Handle Color Red
Base Mounting Style Flange
Includes Locking Handle No
Clamping Force 150 lb
Reflectivity Nonreflective
Clamp Arm Opening Angle 90 Degrees
Accommodates Workpiece Variation No
Mounting Holes Center to Center - Long Side 0.53 in
Tip Material Stainless Steel
Mounting Holes Center to Center - Short Side 0.63 in
Holding Capacity - Maximum 200 lbf
Handle Material Plastic
Handle Orientation Vertical
Arm Style U-Bar

Description

Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 200 lbf, Arm Style U-Bar, Tip Material Stainless Steel, Clamp Arm Opening Angle 90 Degrees , Arm Length 1.21 in, Height Under Arm 0.5 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Metalworking, Welding, Body Material Stainless Steel, Clamping Force 150 lb, Fastener Thread Size #10, Handle Color Red, Handle Material Plastic
