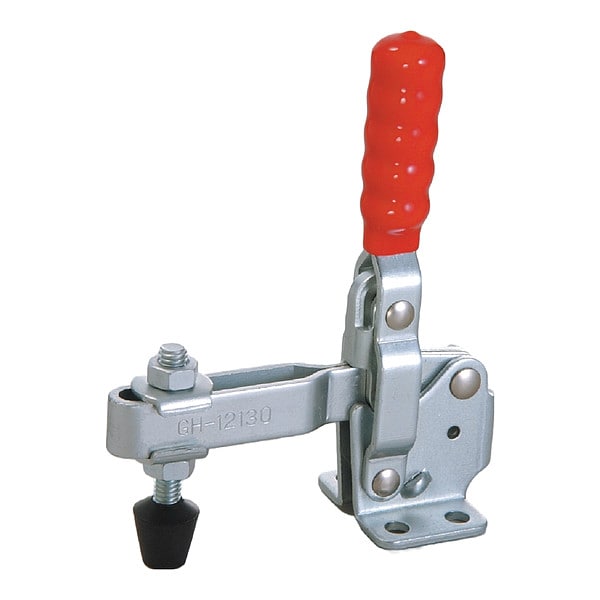

Toggle Clamp, Steel, Vertical, 500 lbf
- Mfr # 806ER3
- Zoro # G310565876
product price:Â
$
10.69
/ea
Key Features
Body Material
Steel
Spindle Material
Steel
Arm Style
U-Bar
Reflectivity
Nonreflective
Accommodates Workpiece Variation
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 806ER3
- Zoro #
- G310565876
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Toggle Clamp
- Body Material
- Steel
- Spindle Material
- Steel
- Arm Style
- U-Bar
- Reflectivity
- Nonreflective
- Accommodates Workpiece Variation
- No
- Clamping Force
- 500 lb
- Holding Capacity - Maximum
- 500 lbf
- Mounting Holes Center to Center - Short Side
- 0.75 in
- Application
- Assembly, Checking Fixtures, Light Machining, Woodworking
- Includes
- (1) Spindle, (2) Flanged Washers, (2) Nuts
- Handle Color
- Red
- Base Mounting Style
- Flange
- Includes Locking Handle
- No
- Clamp Arm Opening Angle
- 100 Degrees
- Tip Material
- Neoprene
- Handle Orientation
- Vertical
- Handle Material
- Plastic
- Mounting Holes Center to Center - Long Side
- 1.25 in
Dimensions
- Tip Diameter
- 0.47 in
- Overall Length
- 4.61 in
- Height Under Arm
- 1.25 in
- Overall Depth
- 5.55 in
- Arm Length
- 2.88 in
- Spindle Thread Size
- 5/16 in
- Fastener Thread Size
- 1/4 in (orM6)
- Overall Width
- 1.81 in
- Wire Rope Length
- 4.61 in
- Length
- 4.61 in
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 500 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 100 Degrees , Arm Length 2.88 in, Height Under Arm 1.25 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Light Machining, Woodworking, Body Material Steel, Clamping Force 500 lb, Fastener Thread Size 1/4 in (orM6), Handle Color Red, Handle Material Plastic
