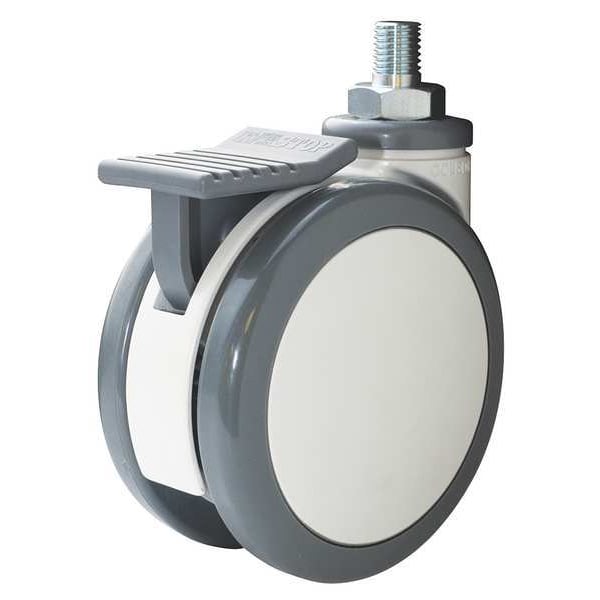

Twin Wheel Swivel Caster Brak, Nyln, 4 in.

Mfr # 3.45024090072001
Zoro # G6683406

55.59

Key Features

Caster Stem Type

Threaded

Tread Shape

Twin Wheel

Wheel Width

2 1/2 in

Mounting Height

120 mm

Load Rating

275 lb

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3.45024090072001
Zoro #: G6683406
UPC #: -
Country of Origin: United Kingdom

Dimensions

Wheel Width: 2 1/2 in
Mounting Height: 120 mm
Stem Length: 51/64 in
Thread Size: M12
Overall Height: 4 45/64 in
Stem Dia.: 15/32 in
Caster Thread Size: M12
Wheel Dia.: 4 in
Caster Stem Size: 3/16 in x 15/32 in
Tire Thickness: 1/2 in

Details

Item: Stem Caster
Caster Stem Type: Threaded
Tread Shape: Twin Wheel
Load Rating: 275 lb
Load Rating Range: 0 to 299 lb
Wheel/Tread Material: Polyurethane
Application: Beds, Care Beds, Hospital Beds, ICU Beds, Medical Chairs/Recliners, Mobile Ultrasound Equipment, Radiology Tables, Stretchers
Non-Marking: Yes
Caster Brake Type: Total Lock
Caster Frame Material: Nylon
Wheel Bearing Type: Ball
Number of Wheels: 2
Wheel Color: Gray
Caster Product Group: Swivel Caster with Total Lock
Caster Sub-Type: Swivel
Frame Finish: Unfinished
Caster Wheel/Tread Material: Nylon
Caster Brake Included: Yes
Caster Load Rating Range: Light-Duty
Caster Wheel Shape: Twin Wheel
Wheel/Tread Color: Gray
Caster Mounting Type: Stem
System of Measurement: Metric
For Use With: Hospital Beds, Stretchers, Mobile Ultrasound Equipment, or Beds, Radiology Tables, Medical Chairs/Recliners, ICU Beds, Care Beds
Wheel Core Type: Solid
For Surface Type: Ceramic, Tile, Vinyl, Wood
Wheel Hardness Rating: 97 Shore A
Operating Temperature - Minimum: 20 Degrees F
Operating Temperature - Maximum: 176 Degrees F
Frame Color: White
Series: TWINTECH
Load Capacity - Maximum: 275 lb

Description

Stem Caster, Swivel Caster with Total Lock, 275 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 2 1/2 in Wheel Width, Polyurethane Wheel/Tread Material, 120 mm Mounting Height, Ball, 3/16 in x 15/32 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 2 Number of Wheels
