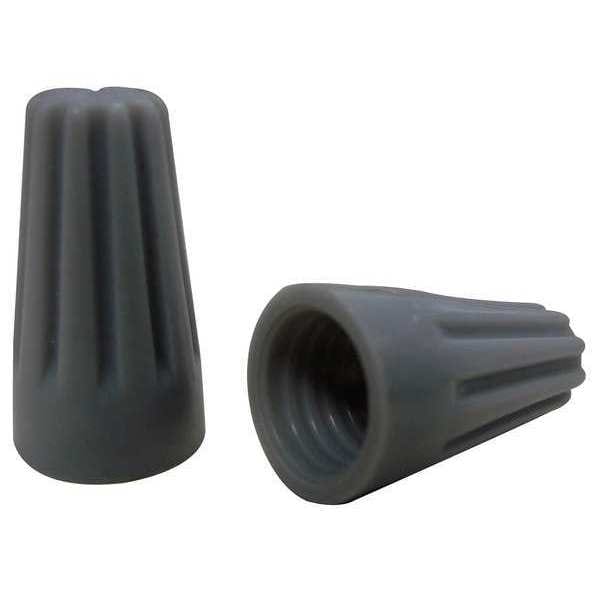

Twist-On Wire Connector, 14 AWG Max, Gray, Thermoplastic Insulation, 300 V, 100 PK
- Mfr # 5UYJ2
- Zoro # G0614677
product price:Â
$
8.59
/pk of 100, $0.09/ea
Key Features
Type
Twist-On
Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Insulation Material
Thermoplastic
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5UYJ2
- Zoro #
- G0614677
- UPC #
- 190735599785
- Country of Origin
- China
- Item
- Twist-On Wire Connector
- Type
- Twist-On
- Color
- Gray
- Insulation Material
- Thermoplastic
- Maximum Voltage
- 300 V
- Minimum Wire Combination
- (2) 22 AWG
- Maximum Wire Combination
- (1) 16 AWG with (1) 18AWG with (1) 20 AWG
- Maximum Operating Temperature
- 221 Degrees F
- UL 94 Flammability Rating
- V-2
- RoHS Compliant
- Yes
- Application
- General Purpose
- Wire Connector Style
- Standard
- Series
- P1
- Standards
- CSA Certified: 175604UL Listed: E113650
- Compatible Installation Tool Model Number
- No. 3
- Special Features
- Deep Skirt Protects against Flash-Over, Square-Wire Spring Creates Secure Connections
- Compatible with Product Type
- Light Fixtures and House Wiring
- For Conductor Material
- Copper
- Maximum Conductors
- 5
- Material
- Steel
- Finish
- Zinc Plated
- Termination Style
- Twist-On
- Contact Finish
- Zinc
- Contact Material
- Steel
Description
Twist On Wire Connector, Color Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (2) 22 AWG, Maximum Wire Combination (1) 16 AWG with (1) 18AWG with (1) 20 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified: 175604UL Listed: E113650, Wire Connector Style Standard, Compatible Installation Tool Model Number No. 3
