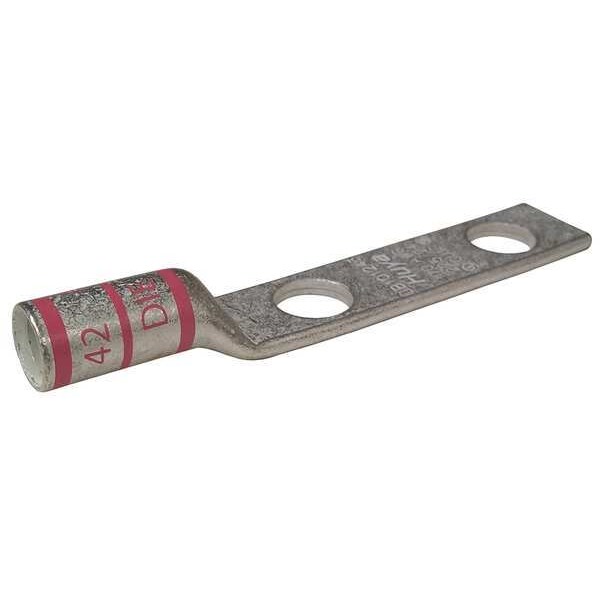

Two-Hole Compression Lug, 1/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, Pink

  • Mfr # 24D025

  • Zoro # G2933029

product price:  $3.95
/ea
Sold in multiples of 120 for $474.00

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24D025
Zoro #
G2933029
UPC #
190735434352
Country of Origin
China

Dimensions

For Wire Size
1/0 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.75 in
Barrel Length
Long
Width
3/4"
Cable Size
1/0
Length
2.96"
Length (Straight Wireway)
2.96 in
Barrel Inside Diameter
0.4 in
Tongue Thickness
0.12 in
Tongue Length
1.63 in
For Stranded Copper Wire Size - Maximum
1/0 AWG
Overall Length
2.96 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Strip Length
1 1/8 in
Barrel Outside Diameter
0.52 in
Hole Size
0.335 in
Overall Width
0.75 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
42
Color Code
Pink
Standards
CSA Certified, UL Listed
Connector Type
Straight Barrel
Hole Center to End
0.38 in
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Tongue Style
Standard
Peep Hole
No
Hole Center to Center
0.88 in
Special Features
Corrosion Resistant, High-Conductivity Construction
For Wire Type
Stranded
Maximum Operating Temperature
300 Degrees F
Contact Finish
Tin
Barrel Style
Chamfered
Termination Style
Crimp
Seam Style
Seamless
Current
230 A
Maximum Voltage
35 kV
RoHS Compliant
Yes
Number of Holes
2

Description

Compression Lug, Barrel Size Long, Color Code Pink, Die Code 42, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole No, Hole Center to Center 0.88 in, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 2
