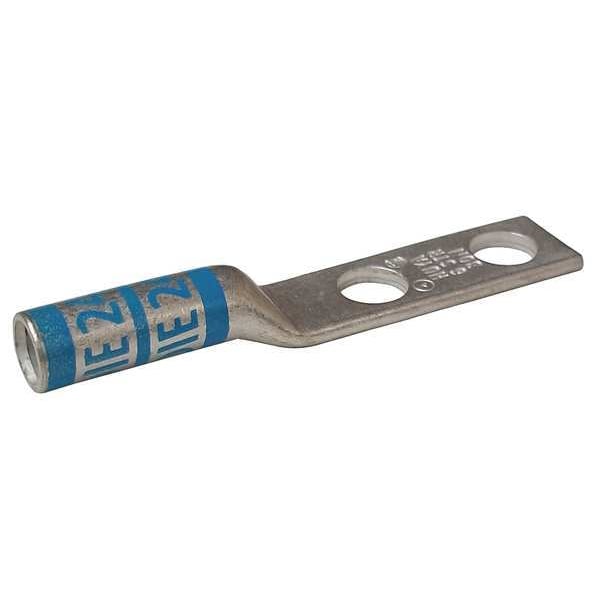

Two-Hole Compression Lug, 6 AWG Max, #10 Stud, Long Barrel, Copper, Blue
Mfr # 24D022
Zoro # G5206397
CAD Available
product price: $2.15
/eaKey Features
CAD Drawing
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
#10
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
24D022
Zoro #
G5206397
UPC #
190735434321
Country of Origin
China
Dimensions
For Wire Size
6 AWG
For Stud Size
#10
Barrel Size
Long
Tongue Width
0.46 in
Cable Size
6 AWG
Length
2.44"
Width
0.46"
Barrel Length
Long
Length (Straight Wireway)
2.44 in
Overall Length
2.44 in
Barrel Inside Diameter
0.22 in
Strip Length
1 1/8 in
For Stranded Copper Wire Size - Maximum
6 AWG
Barrel Outside Diameter
0.31 in
For Stranded Copper Wire Size - Minimum
6 AWG
Hole Size
0.205 in
Tongue Length
1.17 in
Tongue Thickness
0.09 in
Overall Width
0.46 in
Description
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 24, Tongue Angle Straight, Tongue Width 0.46 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 2
