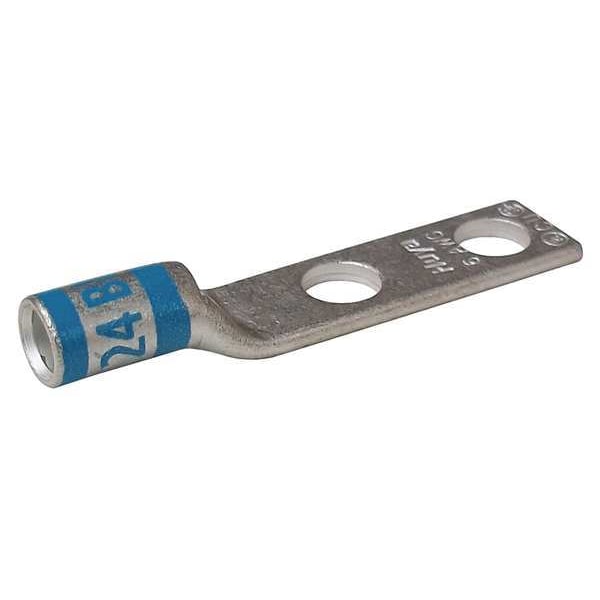

Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Short Barrel, Copper, Blue

  • Mfr # 24C419

  • Zoro # G4687207

product price:
$
2.29
/ea

Key Features

For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Short
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24C419
Zoro #
G4687207
UPC #
190735432648
Country of Origin
China

Dimensions

For Wire Size
6 AWG
For Stud Size
1/4 in
Barrel Size
Short
Tongue Width
0.44 in
Barrel Length
Short
Cable Size
6 AWG
Width
0.44"
Length
1.98"
Length (Straight Wireway)
1.98 in
Hole Size
0.27 in
Barrel Outside Diameter
0.3 in
For Stranded Copper Wire Size - Maximum
6 AWG
For Stranded Copper Wire Size - Minimum
6 AWG
Overall Width
0.44 in
Barrel Inside Diameter
0.22 in
Tongue Thickness
0.08 in
Tongue Length
1.28 in
Strip Length
9/16 in
Overall Length
1.98 in
Wire Rope Length
1.98 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
24
Color Code
Blue
Standards
UL Listed
Peep Hole
Yes
Hole Center to End
0.25 in
Tongue Style
Standard
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Connector Type
Straight Barrel
Hole Center to Center
0.625 in
Barrel Style
Chamfered
Special Features
Corrosion Resistant, High-Conductivity Construction
Seam Style
Seamless
Termination Style
Crimp
RoHS Compliant
Yes
Maximum Voltage
35 kV
For Wire Type
Stranded
Maximum Operating Temperature
300 Degrees F
Current
95 A
Contact Finish
Tin
Number of Holes
2

Description

Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Blue, Die Code 24, Tongue Angle Straight, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed
