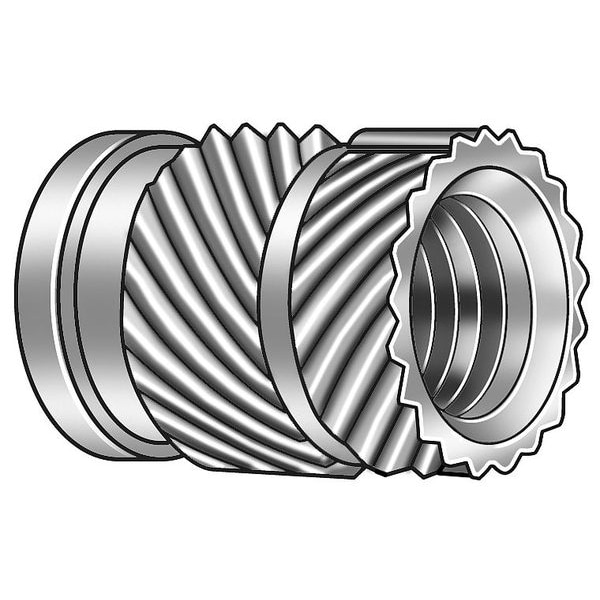

Ultrasonic Insert, 1/4"-20, 1/2 in L, 0.341 in Insert Dia., 0.312 in Tapered End Dia., Brass
Mfr # HI-420-WH-PK500
Zoro # G7997421
product price:Â $107.99
/pk 500, $0.22/ea
Free Shipping & Returns
Key Features
Thread Size
1/4"-20
Material
Brass
Insert Diameter
0.341 in
Shank Type
Straight
Overall Length
1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HI-420-WH-PK500
- Zoro #
- G7997421
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Thread Size
- 1/4"-20
- Insert Diameter
- 0.341 in
- Overall Length
- 1/2 in
- Minimum Material Thickness
- 1/8 in
- Drill Bit Size
- 8.00 mm
- Tapered End Diameter
- 0.312 in
- Maximum Hole Diameter
- 0.315 in
- Wire Rope Length
- 1/2 in
Details
- Item
- Ultrasonic Insert
- Material
- Brass
- Shank Type
- Straight
- Thread Type
- UNC
- Compatible Material
- Thermoplastics
- Installation Method
- Ultrasonic Horn; Heat Driver
- Flange Style
- Flush
- System of Measurement
- Inch
- Thread Direction
- Right Hand
- Insert Type
- Heat-Set Insert
- Finish
- Plain
- Features
- Pull-Out Resistance
- Series
- E-Z Sonic
Description
Heat-Set Insert, Insert Type Heat-Set Insert, System of Measurement Inch, Insert Diameter 11/32 in, Overall Length 1/2 in, Thread Size 1/4 In.-20, Thread Direction Right Hand, Thread Type Coarse, Material Brass, Shank Type Straight, Tapered End Diameter 0.315 in, Flange Style Flush, Number of Vanes Not Applicable, Compatible Material Thermoplastic, Drill Bit Size 8.00 mm, Minimum Material Thickness 1/8 in, Maximum Hole Diameter 0.315 in, Features Pull-Out Resistance, Finish Plain
